Запчасти Case 590SN (21.155.03) - VAR - 423060, 423061 - TRANSMISSION POWERSHIFT S-TYPE - SHAFT, SECONDARY (21) - TRANSMISSION

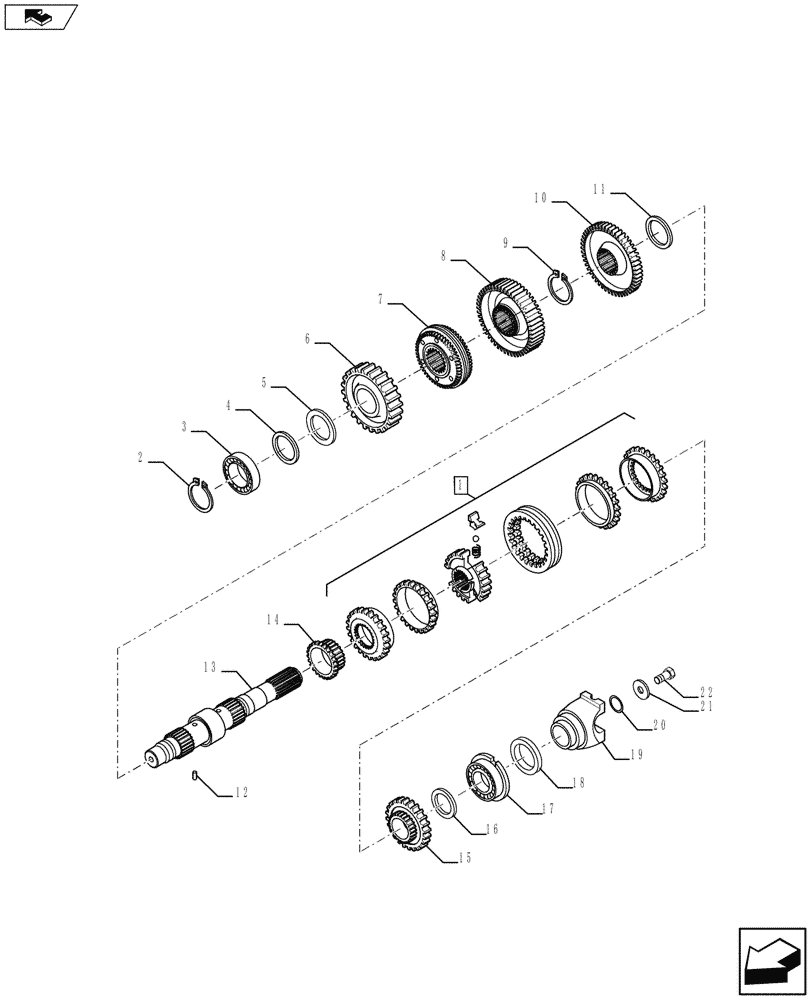

Схема запчастей Case 590SN - (21.155.03) - VAR - 423060, 423061 - TRANSMISSION POWERSHIFT S-TYPE - SHAFT, SECONDARY (21) - TRANSMISSION
home
16
12
7
15
10
8
3
11
22
13
20
19
4
14
1
5
21
9
17
2
18
6

Артикул

Название

Примечание

Количество

1

366398A1

SYNCHRONIZER

Assy

1шт.

2

181118A1

RING, LOCKING,36.5mm ID x 1.75mm Thk

1шт.

3

181132A1

ROLLER BEARING,40mm ID x 80mm OD x 18mm W

1шт.

4

358650A1

SHIM,0.05mm Thk

1шт.

4

358651A1

SHIM,0.1mm Thk

1шт.

4

358652A1

SHIM,0.3mm Thk

1шт.

4

196454A1

SHIM,0.5mm Thk

1шт.

5

358649A1

THRUST WASHER

1шт.

6

87701278

GEAR,44T

1шт.

7

84336876

SYNCHRONIZER

1шт.

8

87701293

GEAR,50T

1шт.

9

358655A1

RING, SNAP,67.4mm ID, Ext

1шт.

10

358656A1

GEAR,44T

1шт.

11

358654A1

RING, SNAP,65.5mm ID, Ext

1шт.

12

181108A1

SPLIT PIN,3mm OD x 8mm L

1шт.

13

87701775

SHAFT

Secondary (Rear Output Shaft)

1шт.

14

358282A1

GEAR,23T

1шт.

15

358283A1

DRIVEN GEAR,33T

1шт.

16

358639A1

WASHER

1шт.

17

181130A1

BEARING, BALL,45 mm ID x 106.5 mm OD x 25 mm

1шт.

18

181123A1

OIL SEAL,60mm ID x 75mm OD x 8mm Thk

1шт.

19

233284A1

YOKE

Rear Drive Shaft

1шт.

20

181144A1

O-RING,39.6mm ID x 3.53mm Width

1шт.

21

181165A1

WASHER,12.5mm ID x 52mm OD x 5mm Thk

1шт.

22

P3533055

SCREW,M12 x 1.25 x 25mm

1шт.

Выбрано товаров: 25
