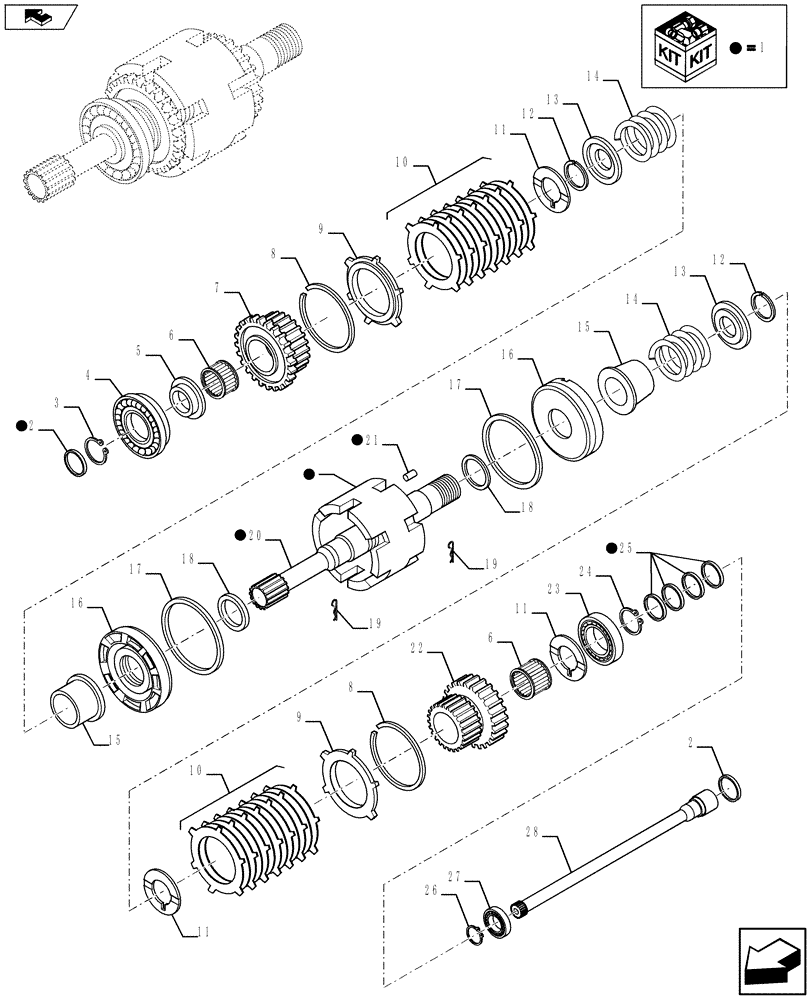

Запчасти Case 590SN (21.155.02) - VAR - 423060 - TRANSMISSION POWERSHIFT S-TYPE - SHAFT, INPUT & PTO (21) - TRANSMISSION

1

87525849

REPAIR KIT

1шт.

2

358645A1

SEALING RING

2шт.

3

A48041

CIRCLIP,41.5mm ID x 2.5mm Thk

1шт.

4

181128A1

BEARING, BALL,45mm ID x 85mm OD x 19mm W

1шт.

5

358635A1

SPACER

1шт.

6

358633A1

BEARING, NEEDLE,50mm ID x 58mm OD x 25mm W

2шт.

7

358632A1

PINION,35T

1шт.

8

181116A1

RING, LOCKING,146.6mm ID x 2.5mm Thk

2шт.

9

310519A1

PLATE

2шт.

10

87705458

CLUTCH OVERHAUL KIT

2шт.

11

358640A1

WASHER

3шт.

12

181111A1

RING, LOCKING,47.8mm ID x 1.5mm Thk

2шт.

13

181161A1

PLATE, THRUST

2шт.

14

358637A1

SPRING

2шт.

15

358641A1

TRANSMISSION SLEEVE

2шт.

16

358644A1

PISTON

2шт.

17

358643A1

SEALING RING,126.83mm ID x 137mm OD x 3.25mm Thk

2шт.

18

358642A1

SEALING RING

2шт.

19

181108A1

SPLIT PIN,3mm OD x 8mm L

2шт.

20

87429973

SHAFT

1шт.

21

139312A1

PLUG,Expansion, 6mm OD

4шт.

22

358638A1

PINION,39T

1шт.

23

ST264

BEARING, BALL,50 mm ID x 90 mm OD x 20 mm

1шт.

24

800-1150

SNAP RING,M50, Ext

1шт.

25

87429984

RING

4шт.

26

800-1130

SNAP RING,M30, Ext

1шт.

27

87429983

BALL BEARING,30mm ID x 55mm OD x 13mm W

1шт.

28

87705460

PTO SHAFT

1шт.
