(21.154.01) - VAR - 423058 - STANDARD TRANSMISSION - PUMP, OIL

Запчасти Case 590SN (21.154.01) - VAR - 423058 - STANDARD TRANSMISSION - PUMP, OIL (21) - TRANSMISSION

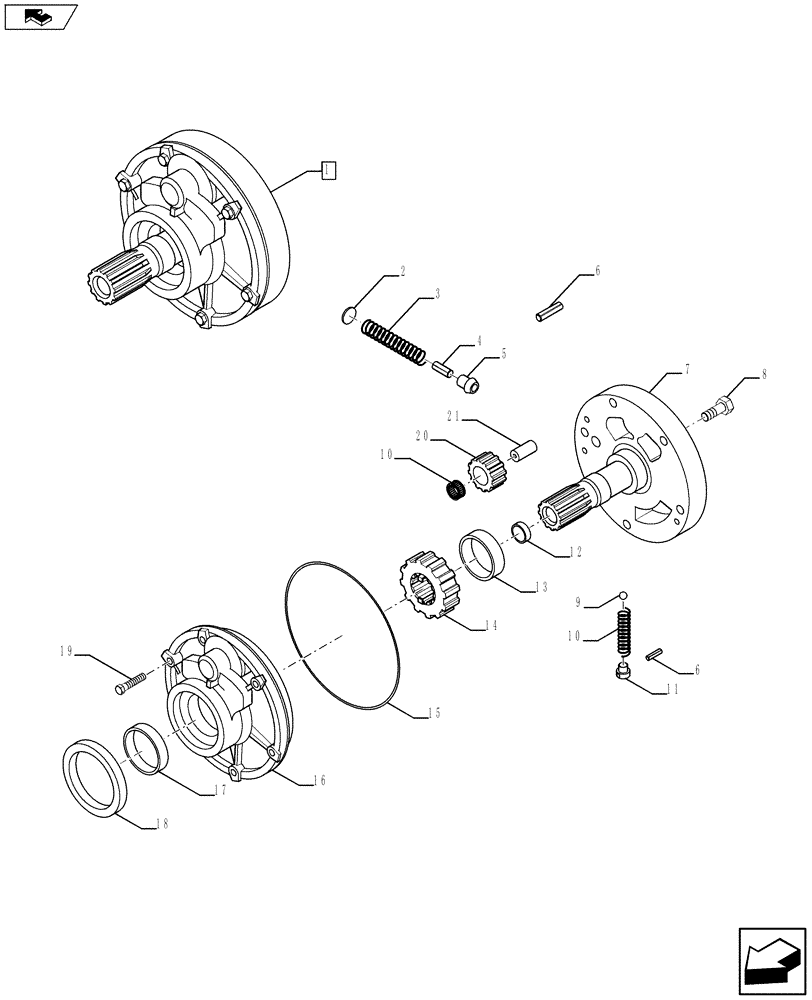

Схема запчастей Case 590SN - (21.154.01) - VAR - 423058 - STANDARD TRANSMISSION - PUMP, OIL (21) - TRANSMISSION
2
19
16
7
18
21
15
10
20
1
3
10
9
13
6
5
17
14
6
11
12
home
4
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87429970

PUMP

Assy, Incl 2 - 21

1шт.

1

87429970R

REMAN-HYD PUMP

1шт.

1

87429970C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Washer, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Cotter pin, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Cotter pin, Incl in 1

2шт.

7

NSS

NOT SOLD SEPARAT

Shaft, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Bolt, Incl in 1

2шт.

9

NSS

NOT SOLD SEPARAT

Ball, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Ring, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Ring, Incl in 1

1шт.

14

NSS

NOT SOLD SEPARAT

Gear, Incl in 1

1шт.

15

181142A1

O-RING,2.5mm Thk x 183mm ID, 70 Duro

1шт.

16

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

17

NSS

NOT SOLD SEPARAT

Ring, Incl in 1

1шт.

18

87429971

OIL SEAL

1шт.

19

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

6шт.

20

NSS

NOT SOLD SEPARAT

Gear, Incl in 1

1шт.

21

NSS

NOT SOLD SEPARAT

Pin, Incl in 1

1шт.

Выбрано товаров: 0
