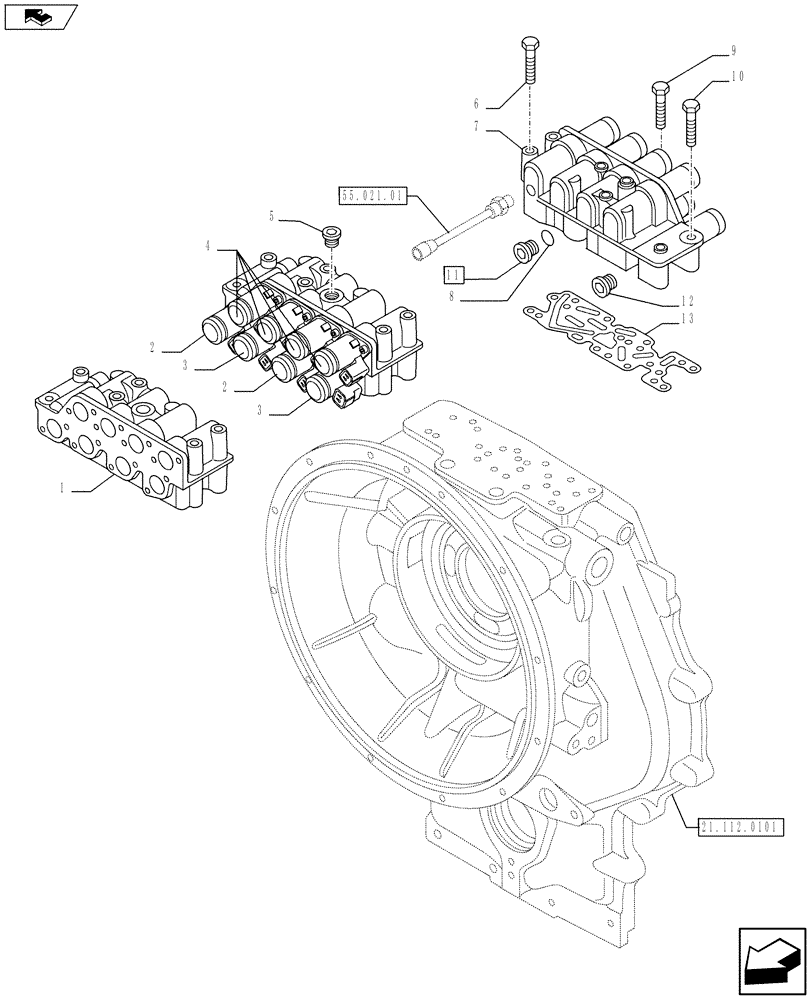

Запчасти Case 590SN (21.135.11) - VAR - 423062 - TRANSMISSION - 4WD POWERSHIFT H TYPE - VALVE, CONTROL (21) - TRANSMISSION

1

87705732

VALVE BODY

1шт.

2

87705568

SOLENOID VALVE

2шт.

3

87705569

SOLENOID VALVE

2шт.

4

87705567

SOLENOID VALVE

4шт.

5

87705714

PLUG

1шт.

6

87707942

BOLT,Hex, M8 x 95mm, Cl. 8.8

1шт.

7

87705566

CONTROL VALVE

1шт.

8

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

9

87705723

BOLT,Hex, M8 x 65mm, Cl. 8.8

1шт.

10

814-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

3шт.

11

9625178

PLUG,9/16" - 18 ORB

Assy, Incl 8

1шт.

12

87705729

PLUG

1шт.

13

87705720

GASKET

1шт.
