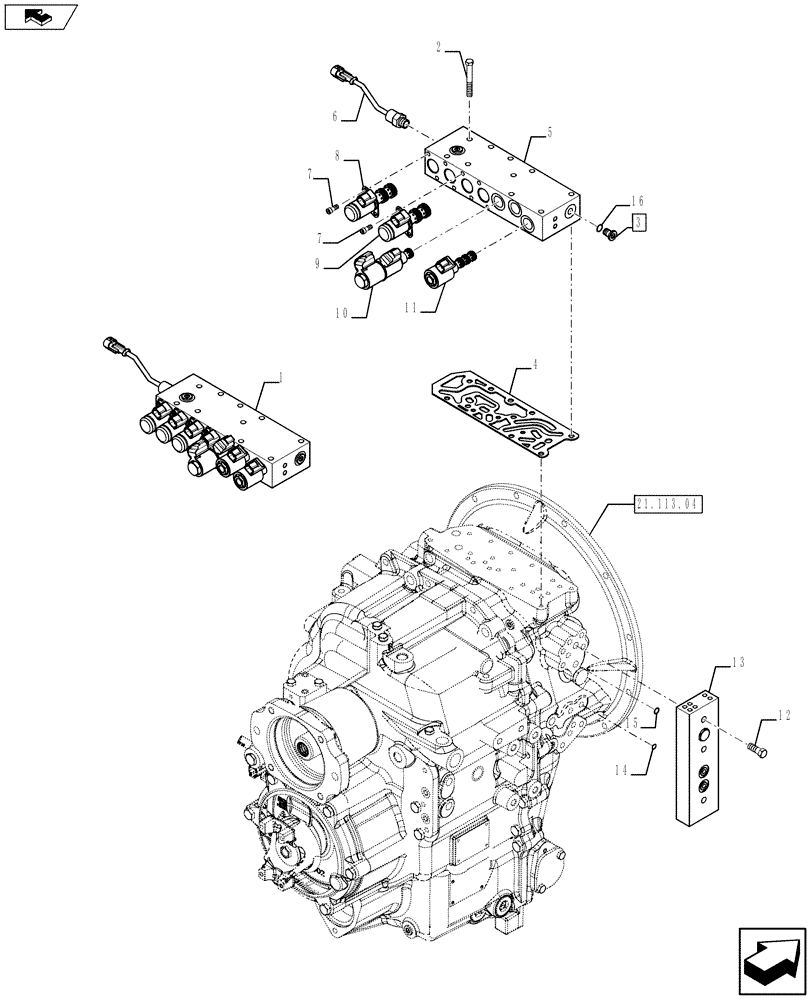

Запчасти Case 590SN (21.135.01) - VAR - 423060, 423061 - TRANSMISSION - VALVE, CONTROL - POWERSHIFT S-TYPE (21) - TRANSMISSION

1

84367060

CONTROL VALVE

1шт.

2

87705723

BOLT,Hex, M8 x 65mm, Cl. 8.8

10шт.

3

9625178

PLUG,9/16" - 18 ORB

Assy, Incl 16

2шт.

4

84367061

GASKET

1шт.

5

84367062

CONTROL VALVE

1шт.

6

87705716

SENSOR

1шт.

6

181105A1

SEALING WASHER,14mm ID x 20mm OD x 1.5mm Thk

1шт.

7

14304021

HEX SOC SCREW,M5 x 10mm, Cl 8.8

8шт.

8

84367063

SOLENOID

(Used for HDL)

2шт.

9

87705567

SOLENOID VALVE

(Used for FWD)

2шт.

10

84574140

SOLENOID

(Used for S2/S4)

1шт.

11

84574141

SOLENOID

(Used for S1/S3)

2шт.

12

84062222

BOLT,Hex, M10 x 45mm, Cl 8.8, Full Thd

5шт.

13

84367066

MANIFOLD

1шт.

14

100760A1

O-RING

12шт.

15

84367067

O-RING,26.65mm ID x 2.62mm Thk

1шт.

16

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
