(21.113.11) - VAR - 423062 - TRANSMISSION, POWERSHIFT, 4WD

Запчасти Case 590SN (21.113.11) - VAR - 423062 - TRANSMISSION, POWERSHIFT, 4WD (21) - TRANSMISSION

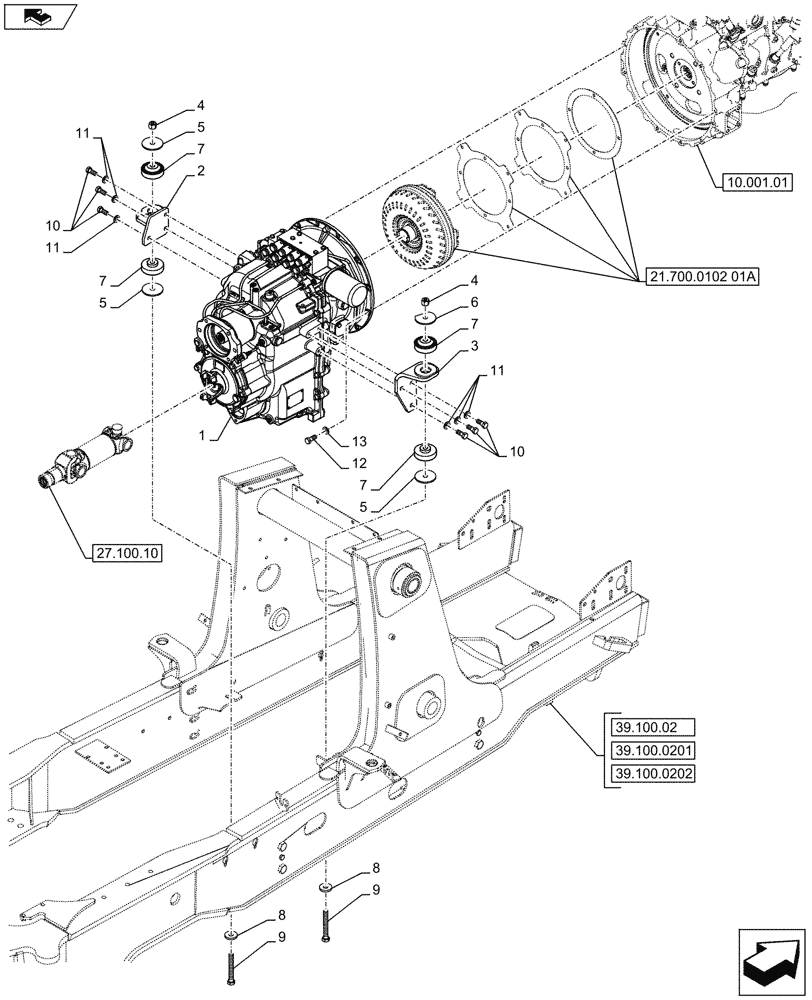

Схема запчастей Case 590SN - (21.113.11) - VAR - 423062 - TRANSMISSION, POWERSHIFT, 4WD (21) - TRANSMISSION
39.100.02
11
home
9
5
2
4
10
12
7
8
5
9
11
7
11
6
7
7
10
4
13
8
1
3
5
39.100.0201
21.700.0102 01a
10.001.01
39.100.0202
27.100.10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87567534

TRANSMISSION

TLB 2, Assy

1шт.

1

87567534R

REMAN-TRANSMISSION

1шт.

1

87567534C

CORE-TRANSMISSION

1шт.

2

84567664

SUPPORT

Transmission Mount, Powershift, LH

1шт.

3

84567666

SUPPORT

Transmission Mount, Powershift, RH

1шт.

4

832-10416

NUT,M16 x 2, Cl 8

2шт.

5

47395221

WASHER,0.66" ID x 3" OD x 0.18" Thk

3шт.

6

47395114

WASHER,16.7mm ID x 76.2mm OD x 4.55m Thk, HTS

1шт.

7

84383342

MOUNT

55 Durometer

4шт.

8

86592702

WASHER,17mm ID x 45mm OD x 6mm Thk

2шт.

9

321246

BOLT,Hex, M16 x 2 x 120mm, Cl 8.8

2шт.

10

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

6шт.

11

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

6шт.

12

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

12шт.

13

496-21041

WASHER,13/32" x 13/16" x .089", HDN

12шт.
