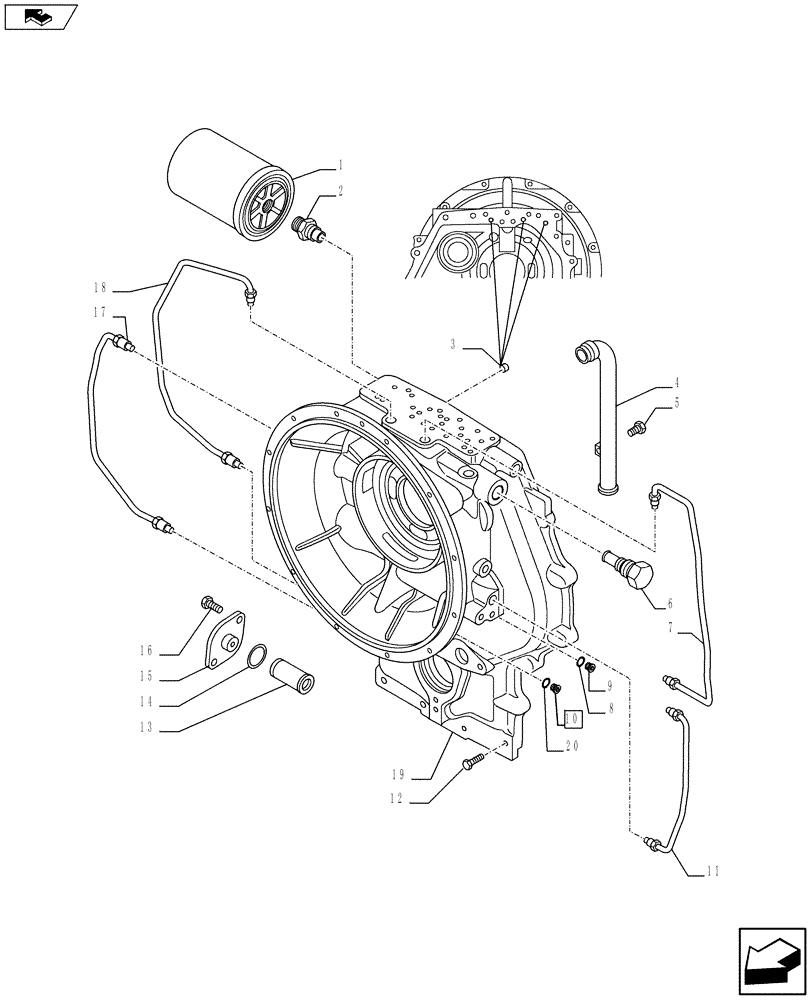

Запчасти Case 590SN (21.113.0402[01]) - VAR - 423062 - POWERSHIFT H-TYPE 4WD - HOUSING &FILTER OIL (21) - TRANSMISSION

1

84475948

FILTER,Spin-on, 13/16” – 16, 97mm OD x 151.6mm L

Transmission

1шт.

2

181202A1

FITTING

1шт.

3

87701779

RIVET,7mm OD

3шт.

4

87705438

PIPE

1шт.

5

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

6

87705439

VALVE

1шт.

7

87705441

TUBE

2nd Speed

1шт.

8

934667R1

SEALING RING,M10 x 14 x 1

5шт.

9

181100A1

PLUG,1/8 CAS x 8

5шт.

10

9625178

PLUG,9/16" - 18 ORB

Assy, Incl 20

2шт.

11

87705444

TUBE

4th Speed

1шт.

12

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

5шт.

13

278534A1

FILTER SCREEN

1шт.

14

100748A1

O-RING,1.421" ID x 1.699" OD x 0.139"

1шт.

15

181219A1

COVER

1шт.

16

614-8018

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

2шт.

17

87705434

TUBE

3th Speed

1шт.

18

87705432

TUBE

1st Speed

1шт.

19

87705437

TRANSMISSION HOUSING

1шт.

20

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
