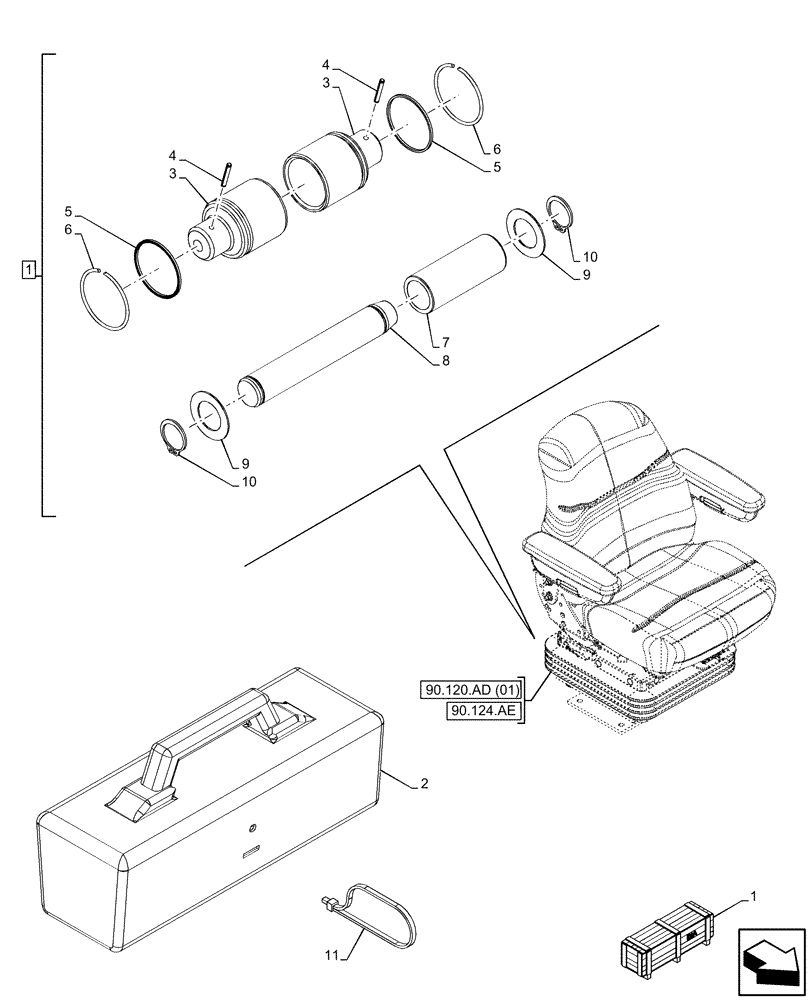

Запчасти Case 590SN (88.100.AG[02]) - VAR - 423081 - TOOL BOX, RETROFIT HYDRAULIC (88) - ACCESSORIES

1

84304990

CONSTRUCTION DIA

ASSY, Bucket Retro-Fit, Hydraulic Coupler, Incl 3 - 10

1шт.

2

87590309

TOOL BOX

1шт.

3

400932A4

PIN,76.2mm OD x 114.5mm L

2шт.

4

135-1233

GROOVED PIN,5.56mm OD x 38.1mm L

2шт.

5

434891A1

WIPER SEAL

2шт.

6

406624A1

RING,81.38mm OD, Ext

2шт.

7

84300835

SLEEVE,38.3mm ID x 50mm OD x 125mm L

1шт.

8

D37614

PIN,38mm Od x 246mm L

1шт.

9

D143324

WASHER,38.15mm ID x 64mm OD x 1.7mm Thk

2шт.

10

D25279

SNAP RING,M35, Int

2шт.

11

L18331

CABLE TIE,375.9mm L, Nylon, Black

1шт.
