(88.100.90[19]) - DIA KIT, DLX CONV, WIDE

Запчасти Case 590SN (88.100.90[19]) - DIA KIT, DLX CONV, WIDE (88) - ACCESSORIES

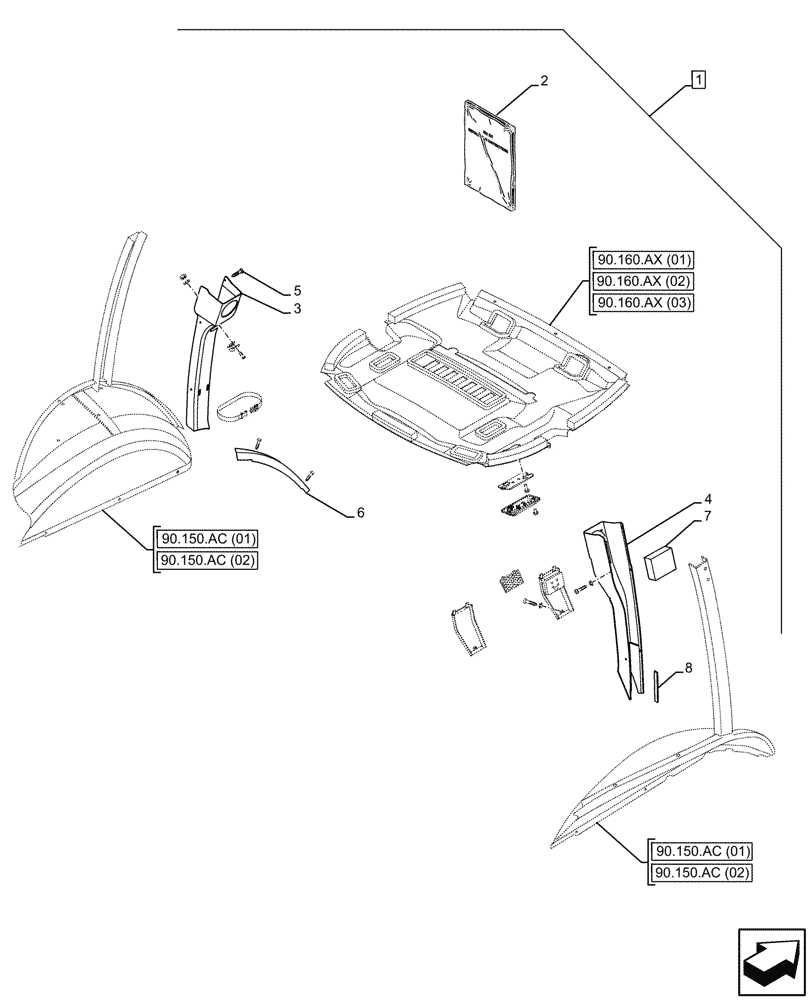

Схема запчастей Case 590SN - (88.100.90[19]) - DIA KIT, DLX CONV, WIDE (88) - ACCESSORIES
90.160.ax (02)
8
3
7
4
2
5
6
1
90.150.ac (02)
90.150.ac (02)
90.150.ac (01)
90.150.ac (01)
90.160.ax (01)
90.160.ax (03)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47605401

CONSTRUCTION DIA

DLX Conversion, Incl 2 - 8

1шт.

Refer to Installation Instruction P/N for Correct Assembly Procedure

1шт.

2

47624892

INSTRUCTION

1шт.

3

84397644

COVER

1шт.

4

84224375

COVER ASSY

1шт.

5

401949A1

FASTENER

10шт.

6

397774A3

STRIP

1шт.

7

412285A1

STRIP

1шт.

8

414939A1

SEAL,200mm L

2шт.
