(88.100.55[22]) - DIA KIT, DIA, MECH - 3 SPL - P-SHIFT TRANS

Запчасти Case 590SN (88.100.55[22]) - DIA KIT, DIA, MECH - 3 SPL - P-SHIFT TRANS (88) - ACCESSORIES

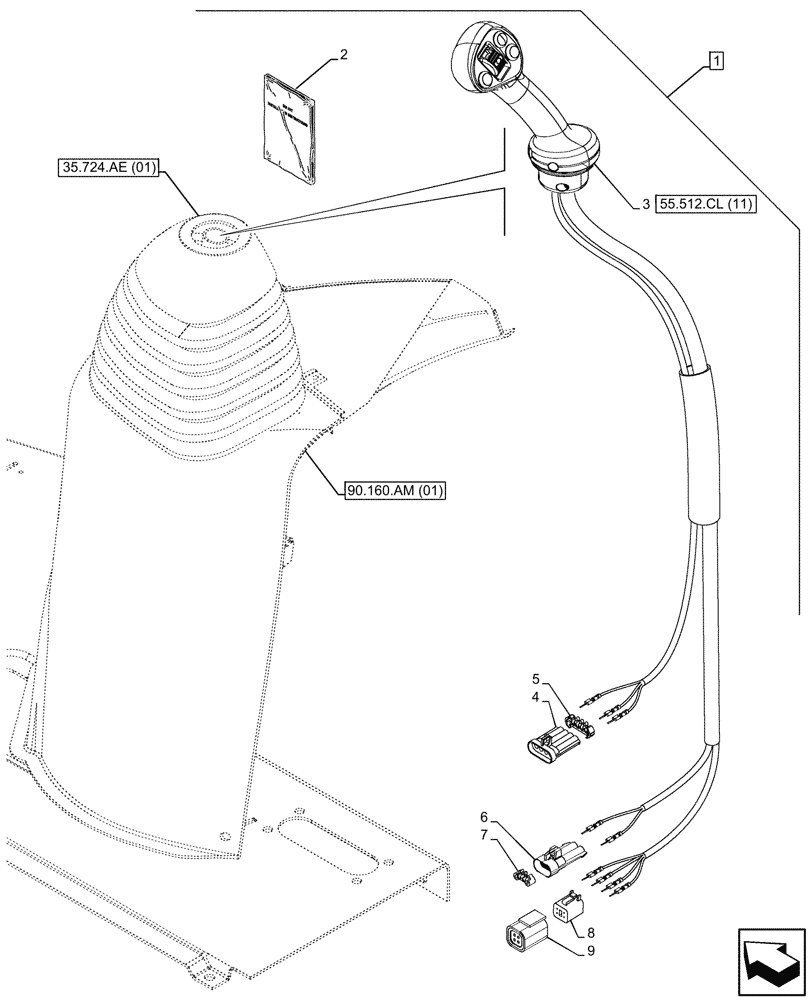

Схема запчастей Case 590SN - (88.100.55[22]) - DIA KIT, DIA, MECH - 3 SPL - P-SHIFT TRANS (88) - ACCESSORIES
90.160.am (01)
8
3
6
7
9
2
5
4
1
55.512.cl (11)
35.724.ae (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47788201

CONSTRUCTION DIA

Kit, DIA MECH - 3 SPL - P-SHIFT TRANS, Incl 2 -9

1шт.

Refer to Installation Instruction P/N for Correct Assembly Procedure

1шт.

2

47788202

INSTRUCTION

1шт.

3

87638044

JOYSTICK

Loader ontrol 3 Spool, ASSY

1шт.

4

256347A1

CONNECTOR, ELEC,Male, 4 Cavities

1шт.

5

258616A1

LOCK

1шт.

6

256341A1

ELEC CONNECTOR,Male, 2 Pin

1шт.

7

258613A1

LOCK

1шт.

8

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

1шт.

9

225327C1

WEDGE,Lock, Black

1шт.
