(88.100.55[01]) - DIA KIT, DIA, MECH - 3 SPL - STD TRANS

Запчасти Case 590SN (88.100.55[01]) - DIA KIT, DIA, MECH - 3 SPL - STD TRANS (88) - ACCESSORIES

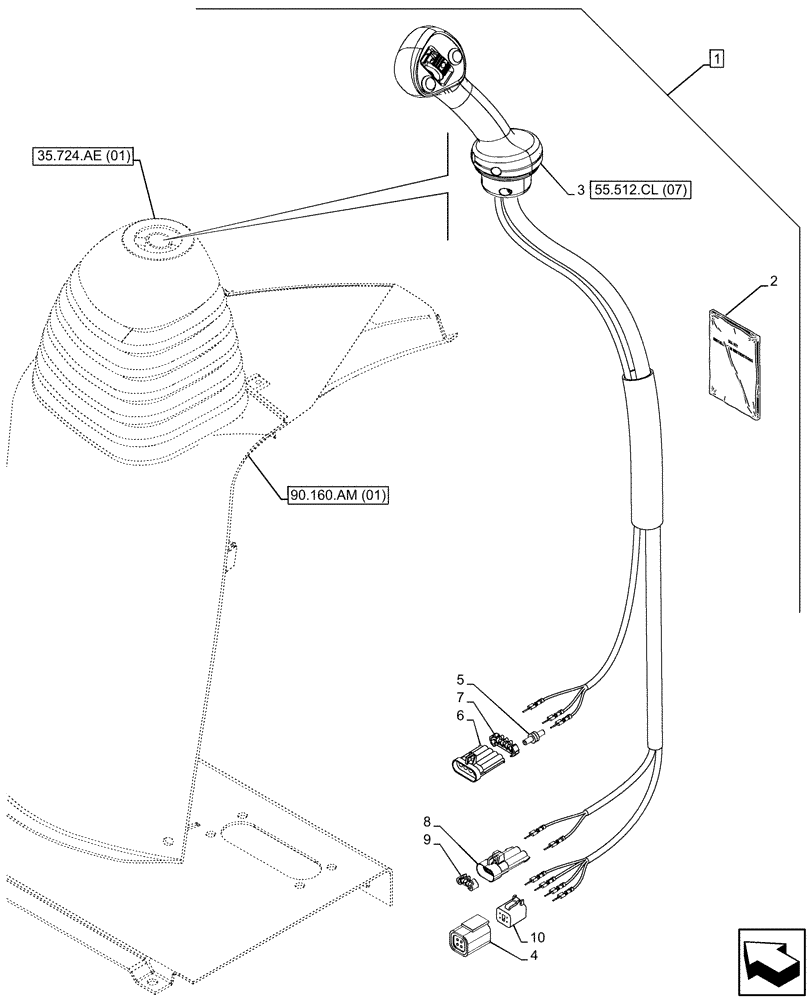

Схема запчастей Case 590SN - (88.100.55[01]) - DIA KIT, DIA, MECH - 3 SPL - STD TRANS (88) - ACCESSORIES
90.160.am (01)
2
5
3
8
7
9
10
6
1
4
55.512.cl (07)
35.724.ae (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47661816

CONSTRUCTION DIA

Kit, DIA MECH - 3 SPL - STD TRANS, Incl 2 -10

1шт.

Refer to Installation Instruction P/N for Correct Assembly Procedure

1шт.

2

47661817

INSTRUCTION

1шт.

3

87638047

JOYSTICK

Loader ontrol 3 Spool, ASSY

1шт.

4

225327C1

WEDGE,Lock, Black

1шт.

5

298176A1

PLUG

1шт.

6

256347A1

CONNECTOR, ELEC,Male, 4 Cavities

1шт.

7

258616A1

LOCK

1шт.

8

256341A1

ELEC CONNECTOR,Male, 2 Pin

1шт.

9

258613A1

LOCK

1шт.

10

239451A1

MULTIPOLE CONNECTOR,Female, 4 Pin

1шт.
