(88.100.35[086]) - DIA KIT, VALVE, PRESSURE REDUCING, PILOT MANIFOLD

Запчасти Case 590SN (88.100.35[086]) - DIA KIT, VALVE, PRESSURE REDUCING, PILOT MANIFOLD (88) - ACCESSORIES

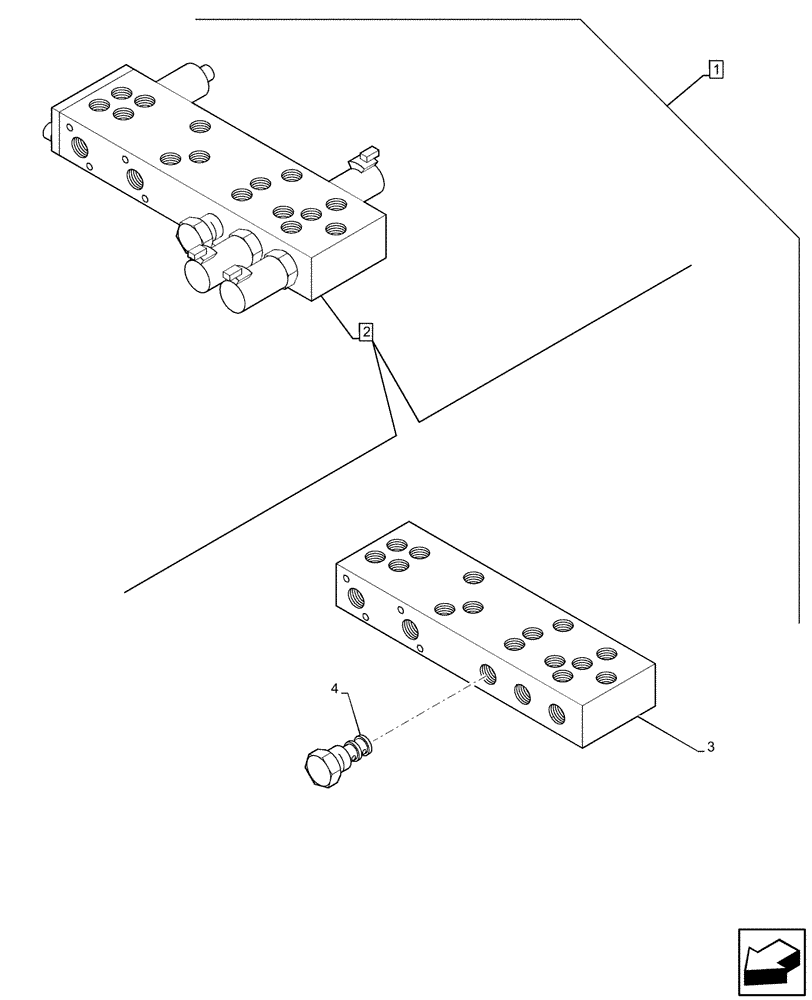

Схема запчастей Case 590SN - (88.100.35[086]) - DIA KIT, VALVE, PRESSURE REDUCING, PILOT MANIFOLD (88) - ACCESSORIES
2
3
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47761898

VALVE, PRESSURE CONT

Reducing, Pilot Manifold, Incl 2 - 4

1шт.

2

47765052

HYDRAULIC VALVE

ASSY, Proportional Pilot Pressure, Incl 3, 4

1шт.

3

NSS

NOT SOLD SEPARAT

Body, Incl in 2

1шт.

4

47761898

VALVE, PRESSURE CONT

Fixed Reducing

1шт.
