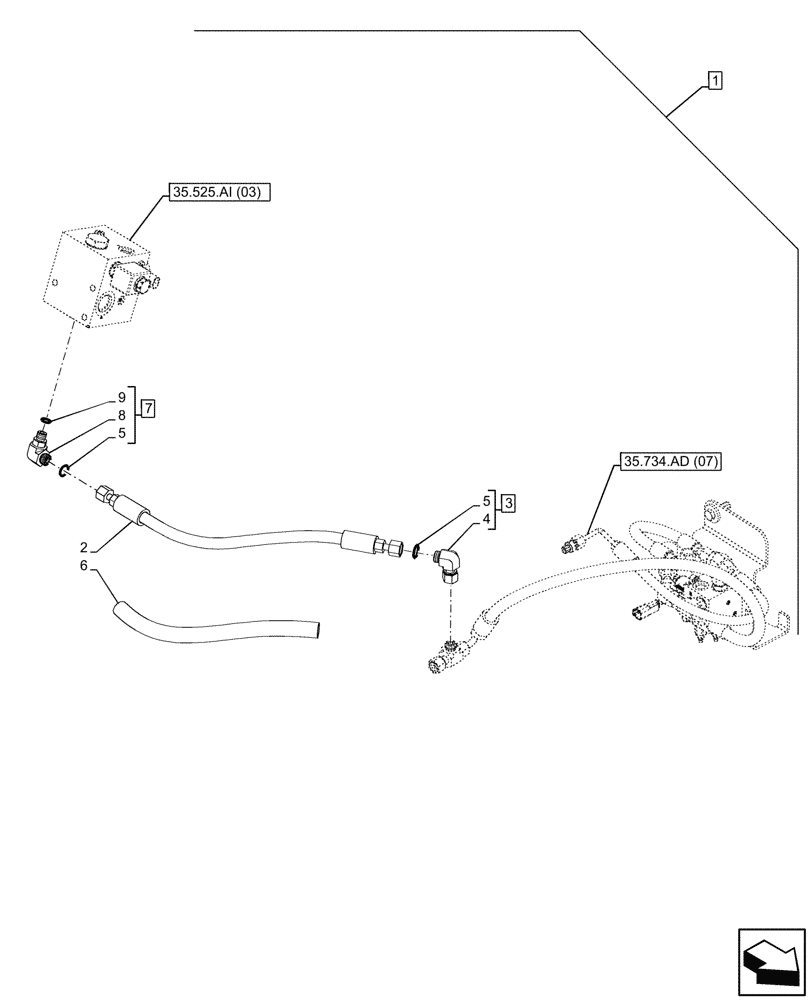

Запчасти Case 590SN (88.100.35[059]) - DIA KIT, NO AUX TO COMBO, EHOE, PC (88) - ACCESSORIES

1

47501542

CONSTRUCTION DIA

No Auxiliary to Combo, Extendable Dipper, Pilot Control, Incl 2 - 9

1шт.

2

84573738

HOSE,10mm ID x 560mm L

1шт.

3

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

ASSY, Incl 5, 6

1шт.

4

NSS

NOT SOLD SEPARAT

90°Elbow, Incl in 4

1шт.

5

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

6

143219A1

HOSE PROTECTION,19mm ID x 24mm OD x 450mm L

1шт.

7

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

ASSY, Incl 6, 9, 10

1шт.

8

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 8

1шт.

9

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
