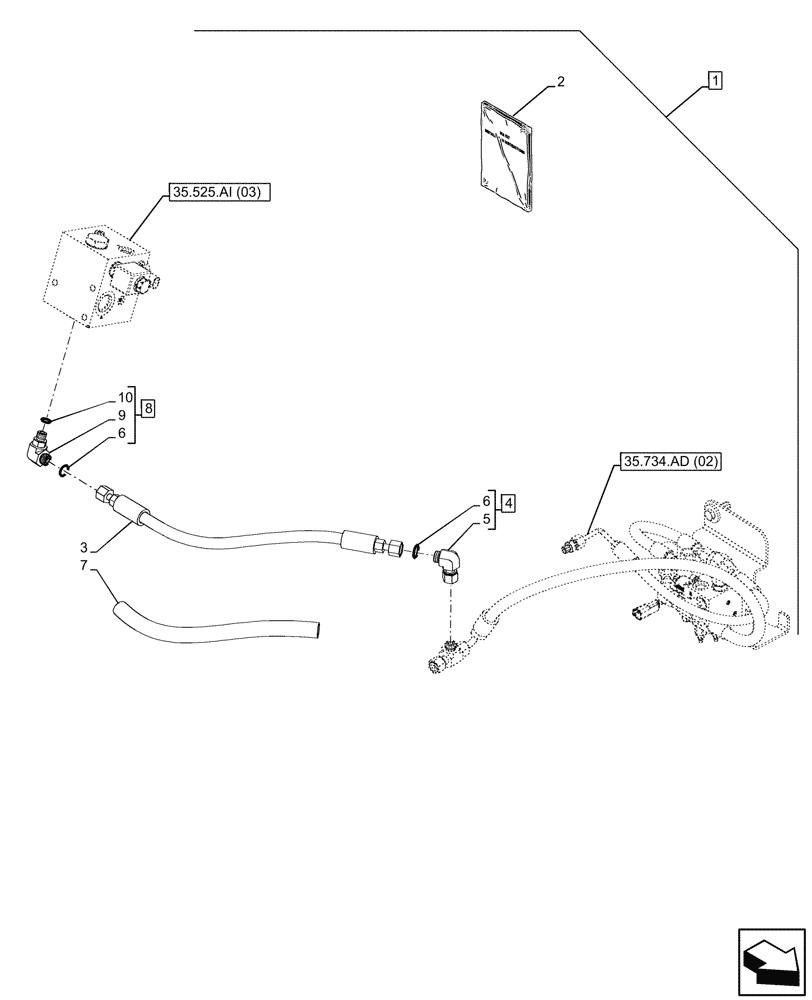

Запчасти Case 590SN (88.100.35[057]) - DIA KIT, UNI-DIR, PC, EHOE (88) - ACCESSORIES

1

47359953

CONSTRUCTION DIA

Kit, Uni-Dir, Pilot Control, Extendable Dipper, Incl 2 - 10

1шт.

Refer to Installation Instruction P/N for Correct Assembly Procedure

1шт.

2

47357896

INSTRUCTION

1шт.

3

84573738

HOSE,10mm ID x 560mm L

1шт.

4

84989392

ELBOW,90 Degree, 11/16"-16 ORFS x 11/16"-16 Fem Sw

ASSY, Incl 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 4

1шт.

6

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

7

143219A1

HOSE PROTECTION,19mm ID x 24mm OD x 450mm L

1шт.

8

9840543

90 ELBOW,90 Degree, 11/16"-16 x 9/16"-18 Adj, ORFS

ASSY, Incl 6, 9, 10

1шт.

9

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 8

1шт.

10

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
