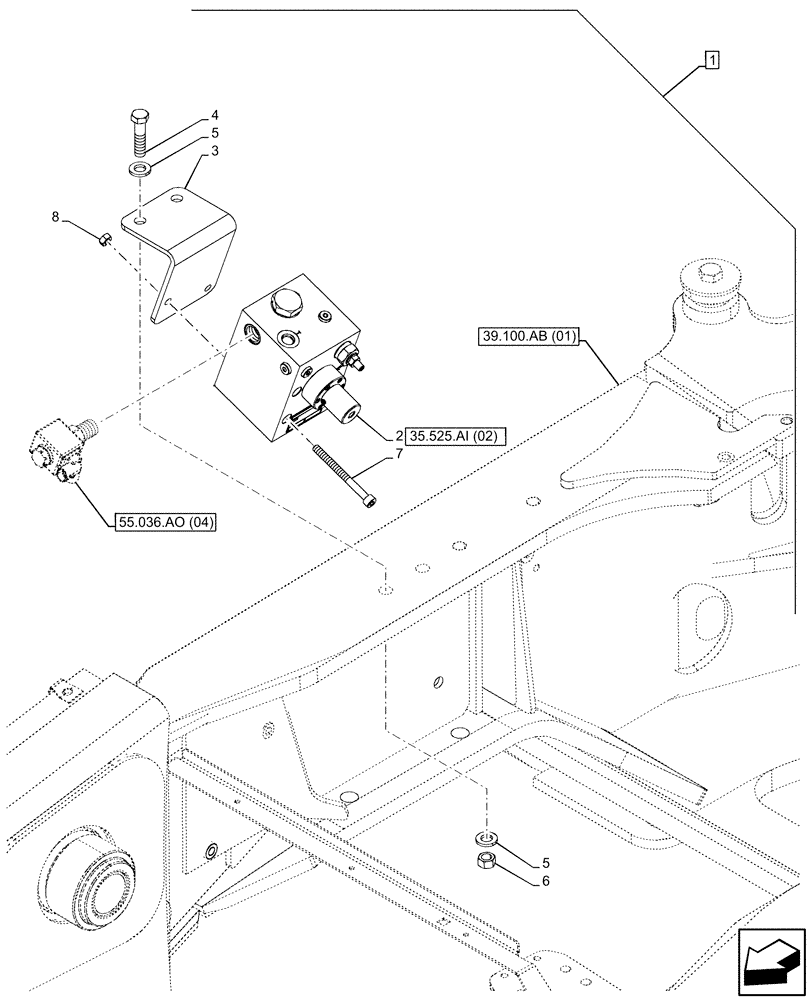

Запчасти Case 590SN (88.100.35[048]) - DIA KIT, UNI-DIR MC, STD DIP (88) - ACCESSORIES

1

84546990

CONSTRUCTION DIA

Uni-Dir Mechanical Control, Standard Dipper, Incl 2 - 8

1шт.

2

84247109

VALVE

1шт.

3

84257782

BRACKET

1шт.

4

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

2шт.

5

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

4шт.

6

337475

NUT,M12, Cl 10

2шт.

7

1960667

HEX SOC SCREW,M8 x 90mm, Cl 8.8

2шт.

8

43362

NUT,M8 x 1.25, Cl 10

2шт.
