(88.100.35[047]) - DIA KIT, UNI-DIR MC, STD DIP

Запчасти Case 590SN (88.100.35[047]) - DIA KIT, UNI-DIR MC, STD DIP (88) - ACCESSORIES

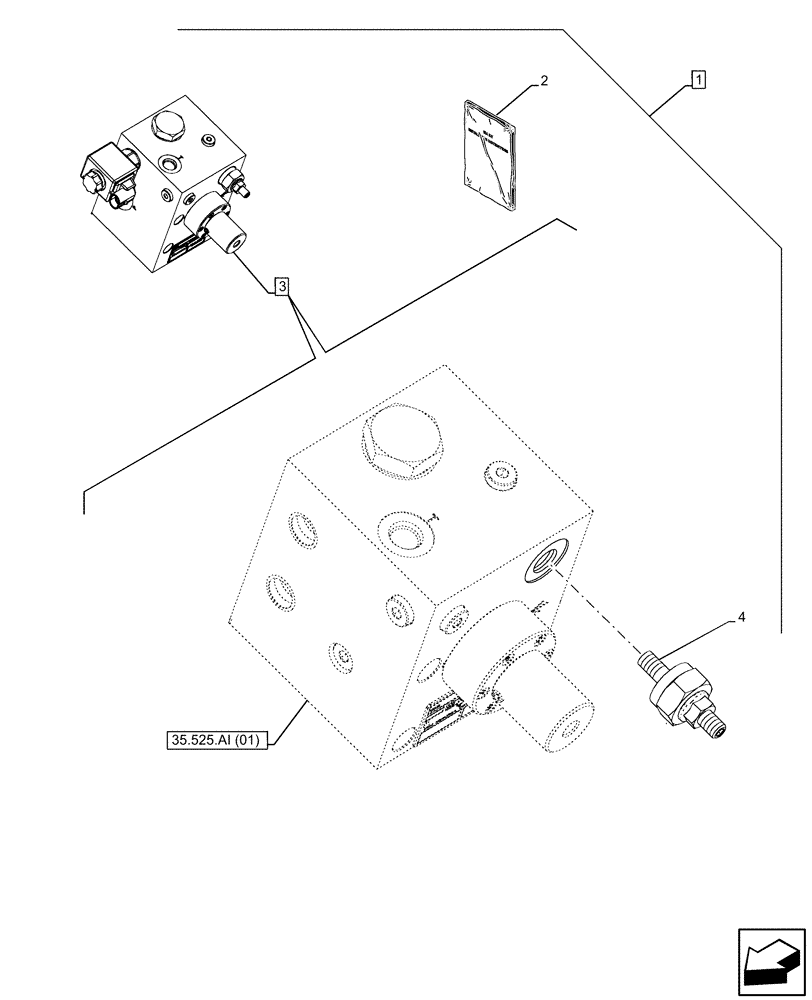

Схема запчастей Case 590SN - (88.100.35[047]) - DIA KIT, UNI-DIR MC, STD DIP (88) - ACCESSORIES
35.525.ai (01)
4
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84546990

CONSTRUCTION DIA

Uni-Dir, Mechanical Control, Standard Dipper, Incl 2 - 4

1шт.

Refer to Installation Instruction P/N for Correct Assembly Procedure

1шт.

2

84546991

INSTRUCTION

1шт.

3

84247109

VALVE

ASSY, Incl 3

1шт.

4

9970178

VALVE PRESSURE RELIE

1шт.
