(88.100.35[035]) - DIA KIT, NO AUX TO COMBO AUX, MC, EHOE

Запчасти Case 590SN (88.100.35[035]) - DIA KIT, NO AUX TO COMBO AUX, MC, EHOE (88) - ACCESSORIES

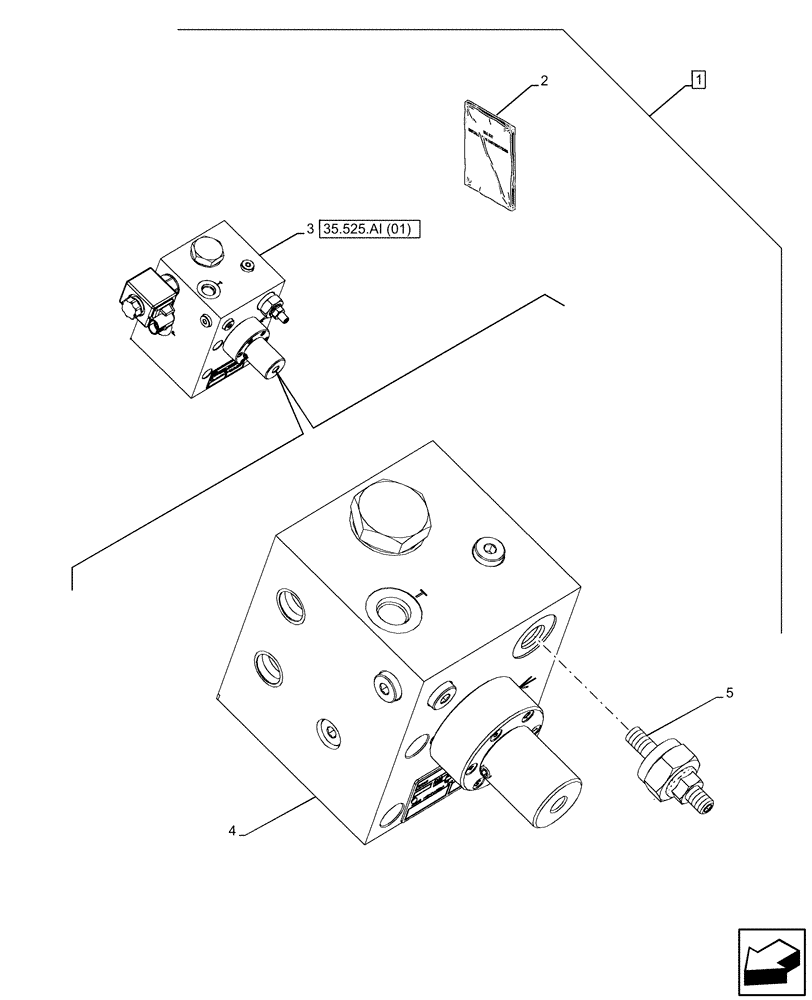

Схема запчастей Case 590SN - (88.100.35[035]) - DIA KIT, NO AUX TO COMBO AUX, MC, EHOE (88) - ACCESSORIES
35.525.ai (01)
2
3
5
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84546985

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Mechanical Control, Extendable Dipper, Incl 2, 3

1шт.

Refer to Installation Instruction P/N for Correct Assembly Procedure

1шт.

2

84546984

INSTRUCTION

1шт.

3

84247109

VALVE

ASSY, Incl 4, 5

1шт.

4

NSS

NOT SOLD SEPARAT

Valve, Incl in 3

1шт.

5

9970178

VALVE PRESSURE RELIE

1шт.
