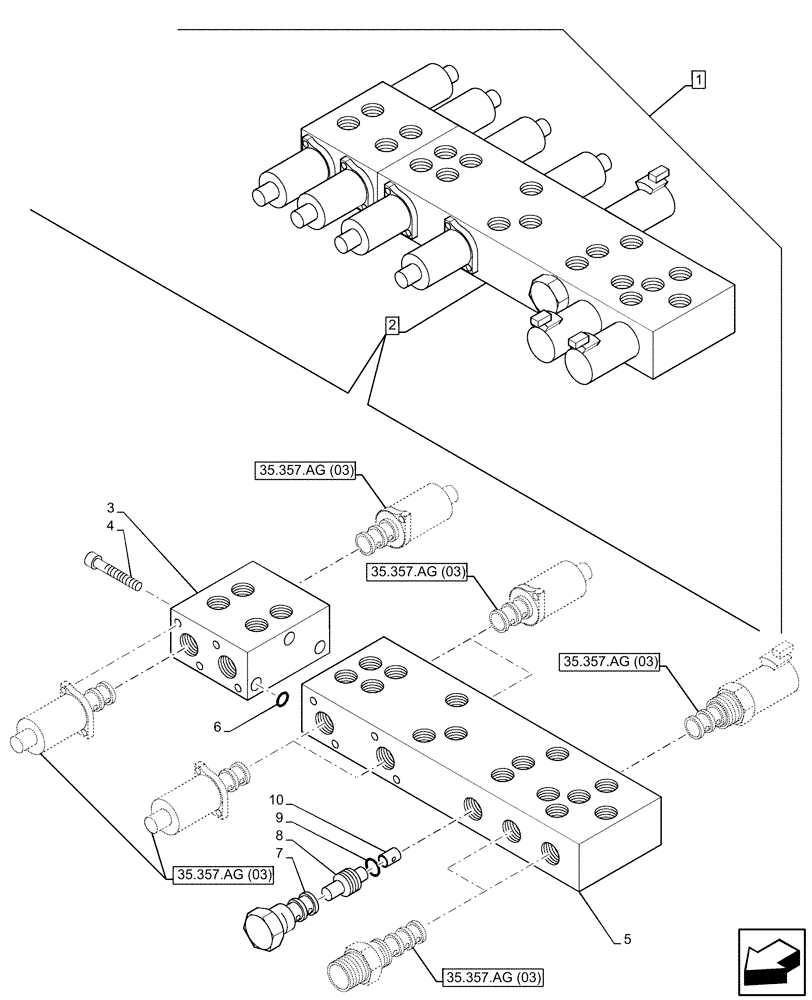

Запчасти Case 590SN (88.100.35[022]) - DIA KIT, UNI-AUX TO COMBO AUX, PILOT, EHOE (88) - ACCESSORIES

1

47662033

CONSTRUCTION DIA

Uni-Auxiliary to Combo Auxiliary, Pilot Control, Extendable Dipper, Incl 2 -10

1шт.

2

47765047

PILOT VALVE

ASSY, 4 Section with Pattern Select, Incl 3 - 10

1шт.

3

85828048

MANIFOLD VALVE

2-Function

1шт.

4

85828061

SCREW,M5 x 80mm

3шт.

5

NSS

NOT SOLD SEPARAT

Block, Incl in 2

1шт.

6

85827999

SEAL KIT

1шт.

7

47761898

VALVE, PRESSURE CONT

Fixed Pressure Reducing

1шт.

8

85827992

CHECK VALVE

1шт.

9

85828003

O-RING,1mm Thk x 9mm ID

1шт.

10

85828005

ORIFICE

1шт.
