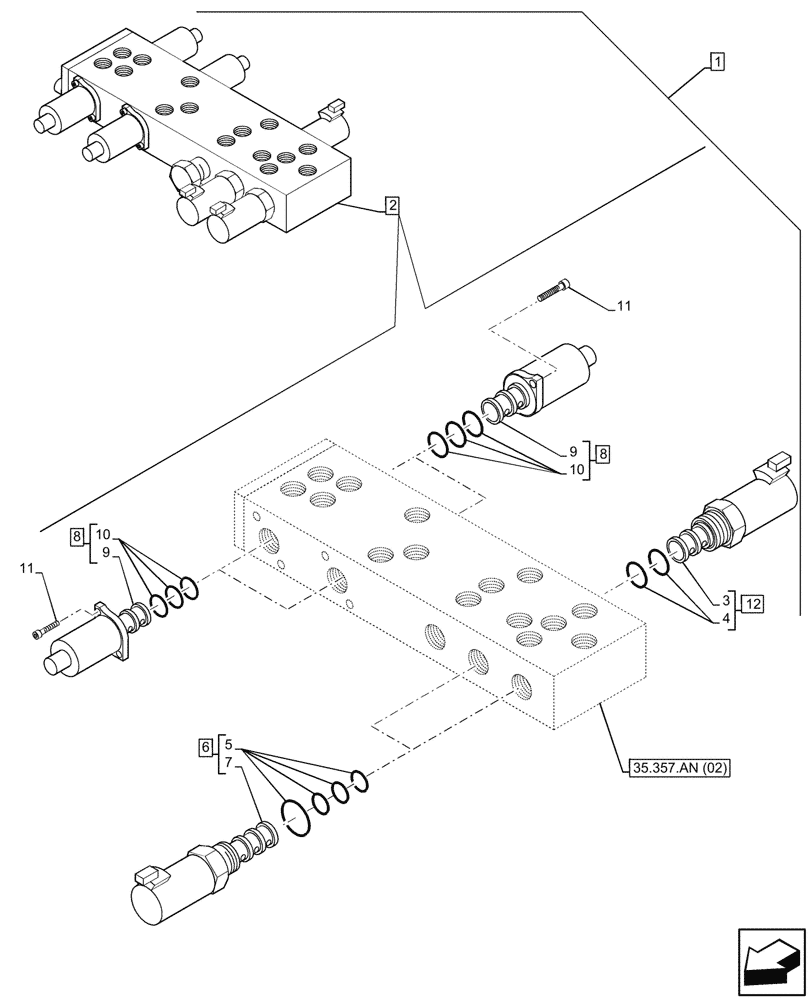

Запчасти Case 590SN (88.100.35[021]) - DIA KIT, UNI-AUX TO COMBO AUX, PILOT, EHOE (88) - ACCESSORIES

1

47662033

CONSTRUCTION DIA

Uni-Auxiliary to Combo Auxiliary, Pilot Control, Extendable Dipper, Incl 2 - 12

1шт.

2

47765052

HYDRAULIC VALVE

ASSY, Proportional Pilot Pressure

1шт.

3

NSS

NOT SOLD SEPARAT

Valve, Incl in 12

1шт.

4

85827998

SEAL KIT

1шт.

5

85828002

SEAL KIT

2шт.

6

85827996

SOLENOID VALVE,2 Section

ASSY, Incl 5 ,7

2шт.

7

NSS

NOT SOLD SEPARAT

Valve, Incl in 6

2шт.

8

85827993

SOLENOID VALVE

ASSY, Pressure Reducing, Incl 9 (Qty 1), 10 (Qty 1)

4шт.

9

85819378

KIT

Valve, Incl in 8

1шт.

10

85824281

SEAL KIT,Control Valve Section, Complete

4шт.

11

14302921

HEX SOC SCREW,M4 x 10mm, Cl 8.8, Full Thd

8шт.

12

85827994

SOLENOID VALVE

ASSY, Incl 3, 4

1шт.
