(84.912.AC[03]) - VAR - 423076 - EXTENDABLE DIPPER, FIXED, ARM

Запчасти Case 590SN (84.912.AC[03]) - VAR - 423076 - EXTENDABLE DIPPER, FIXED, ARM (84) - BOOMS, DIPPERS & BUCKETS

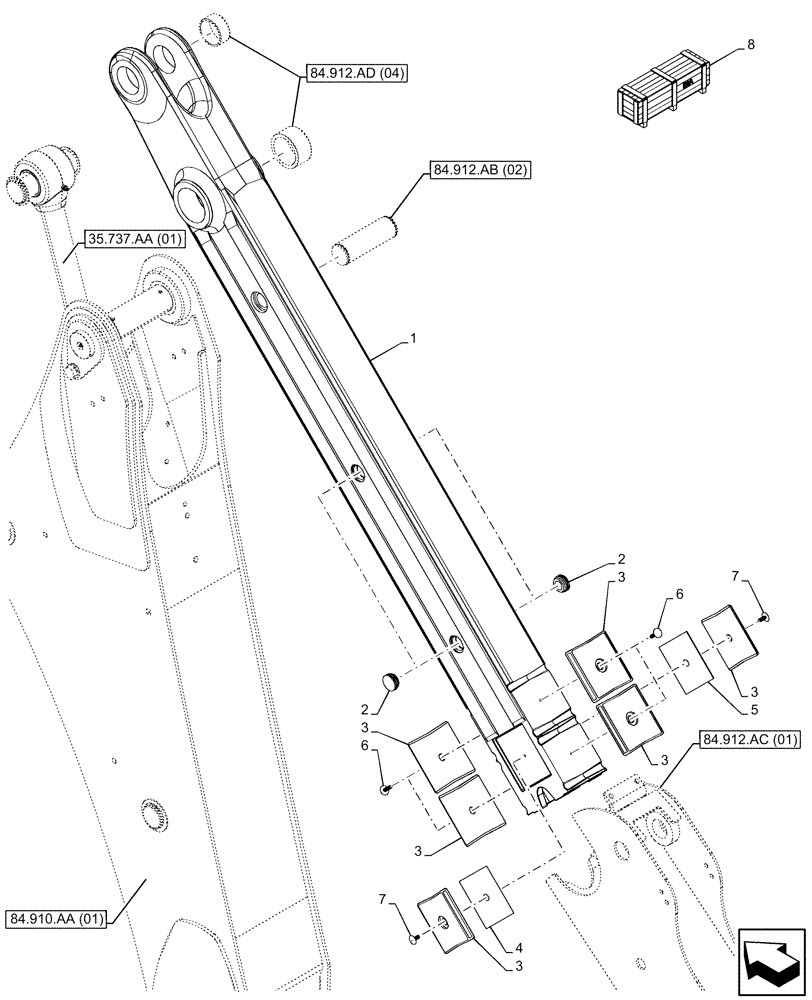

Схема запчастей Case 590SN - (84.912.AC[03]) - VAR - 423076 - EXTENDABLE DIPPER, FIXED, ARM (84) - BOOMS, DIPPERS & BUCKETS
84.912.ab (02)
1
3
3
7
2
4
5
3
3
6
3
7
8
6
3
2
84.912.ad (04)
35.737.aa (01)
84.912.ac (01)
84.910.aa (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84298779

DIPPER

ASSY

1шт.

See Dipper Components also in Figure 84.912.AD (04)

1шт.

2

D133865

PLUG

4шт.

3

451384A1

WEAR PLATE

6шт.

4

132844A1

SHIM,19mm ID x 142mm OD x 0.8mm Thk

1шт.

5

132842A1

SHIM,19mm ID x 142mm OD x 1.6mm Thk

1шт.

6

183443A1

PIN,6.6mm OD x 38.5mm L

4шт.

7

183509A1

PIN,8.3mm OD x 22mm L

2шт.

8

47520387

CONSTRUCTION DIA

Convert Standard Dipper to Extendable Dipper, Foot Swing Control, Incl 1 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

8

47520393

CONSTRUCTION DIA

Convert Standard Dipper to Extendable Dipper, Hand Swing Control, Incl 1 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
