(84.912.AA[02]) - STANDARD DIPPER, W/ HYDRAULIC COUPLER

Запчасти Case 590SN (84.912.AA[02]) - STANDARD DIPPER, W/ HYDRAULIC COUPLER (84) - BOOMS, DIPPERS & BUCKETS

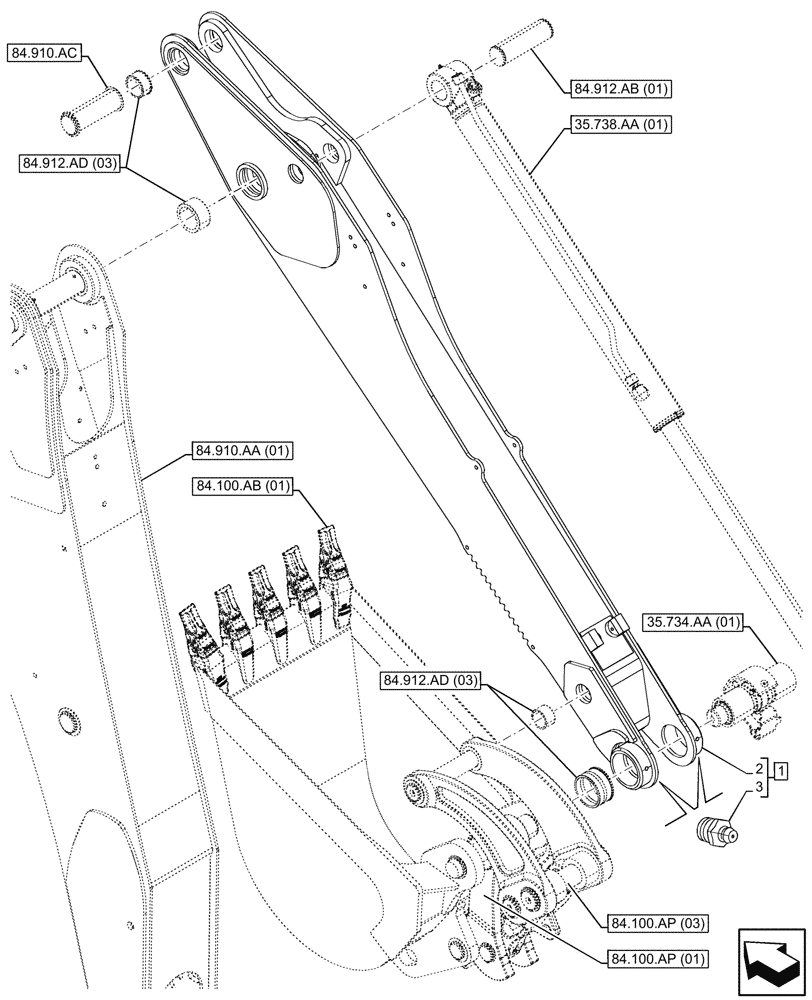

Схема запчастей Case 590SN - (84.912.AA[02]) - STANDARD DIPPER, W/ HYDRAULIC COUPLER (84) - BOOMS, DIPPERS & BUCKETS
35.738.aa (01)
1
2
3
84.912.ad (03)
84.912.ad (03)
84.100.ap (01)
84.100.ap (03)
35.734.aa (01)
84.912.ab (01)
84.100.ab (01)
84.910.aa (01)
84.910.ac
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84479425

DIPPER

ASSY, Incl 2, 3

1шт.

See Dipper Components also in Figure 84.912.AD (02)

1шт.

2

NSS

NOT SOLD SEPARAT

Dipper, Incl in 1

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

Выбрано товаров: 4
