(84.100.AP[03]) - VAR - 442017 - BACKHOE BUCKET, MECHANICAL, COUPLING, 15FT/457MM

Запчасти Case 590SN (84.100.AP[03]) - VAR - 442017 - BACKHOE BUCKET, MECHANICAL, COUPLING, 15FT/457MM (84) - BOOMS, DIPPERS & BUCKETS

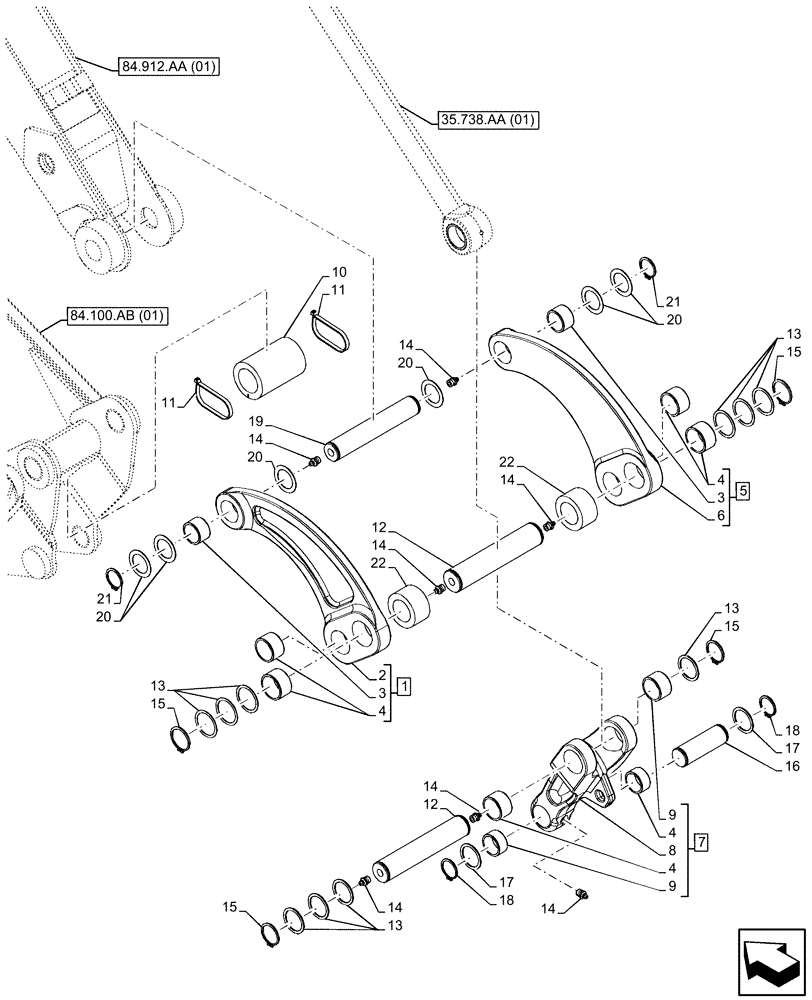

Схема запчастей Case 590SN - (84.100.AP[03]) - VAR - 442017 - BACKHOE BUCKET, MECHANICAL, COUPLING, 15FT/457MM (84) - BOOMS, DIPPERS & BUCKETS
35.738.aa (01)
15
20
22
14
14
9
14
11
13
20
16
4
17
8
12
3
13
4
22
14
1
14
9
13
19
15
14
3
12
20
17
15
13
5
15
4
18
20
10
11
14
18
21
4
6
2
7
21
84.100.ab (01)
84.912.aa (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84230435

LINK ASSY.

Incl 2, 3 (Qty 1), 4 ((Qty 2)

1шт.

2

NSS

NOT SOLD SEPARAT

Link, Incl in 1

1шт.

3

84170645

BUSHING,50.19mm ID x 60mm OD x 36mm L

2шт.

4

84170654

BUSHING,60.19mm ID x 70mm OD x 38mm L

6шт.

5

84230436

LINK ASSY.

Incl 3 (Qty 1), 4 (Qty 2), 6

1шт.

6

NSS

NOT SOLD SEPARAT

Link, Incl in 5

1шт.

7

84530028

LINK BLOCK

ASSY, Incl 4 (Qty 2), 8, 9

1шт.

8

NSS

NOT SOLD SEPARAT

Link, Incl in 7

1шт.

9

84229923

BUSHING,55.19mm ID x 64.98mm OD x 29mm L

55.19mm ID x 64.98mm OD x 29mm L

2шт.

10

87682091

FOAM INSULATION

1шт.

11

305342A1

STRAP,450mm L

2шт.

12

84171217

PIN,60mm OD x 294.78mm L

Backhoe Link

2шт.

13

84224845

SHIM,62mm ID x 75mm OD x 1.5mm Thk

12шт.

14

219-1

LUBE NIPPLE,1/8" - 27 NPTF

7шт.

15

84224886

RING,60mm ID, Ext

4шт.

16

84231817

PIN,55mm OD x 151mm L

Bucket Cylinder to Dipper

1шт.

17

84231927

SHIM,57mm ID x 70mm OD x 2.77mm Thk

2шт.

18

84233536

RING,55mm ID, Ext

2шт.

19

84171343

PIN,50mm OD x 291.76mm L

Backhoe Link

1шт.

20

495-81227

WASHER,52.38mm ID x 74.63mm OD x 1.7mm Thk

6шт.

21

87016943

RING, SNAP,50mm ID , Ext

2шт.

22

84170641

SPACER,60.19mm ID x 94.7mm OD x 52mm L

2шт.
