(82.100.AA) - ARM, PIVOT, BUSHING

Запчасти Case 590SN (82.100.AA) - ARM, PIVOT, BUSHING (82) - FRONT LOADER & BUCKET

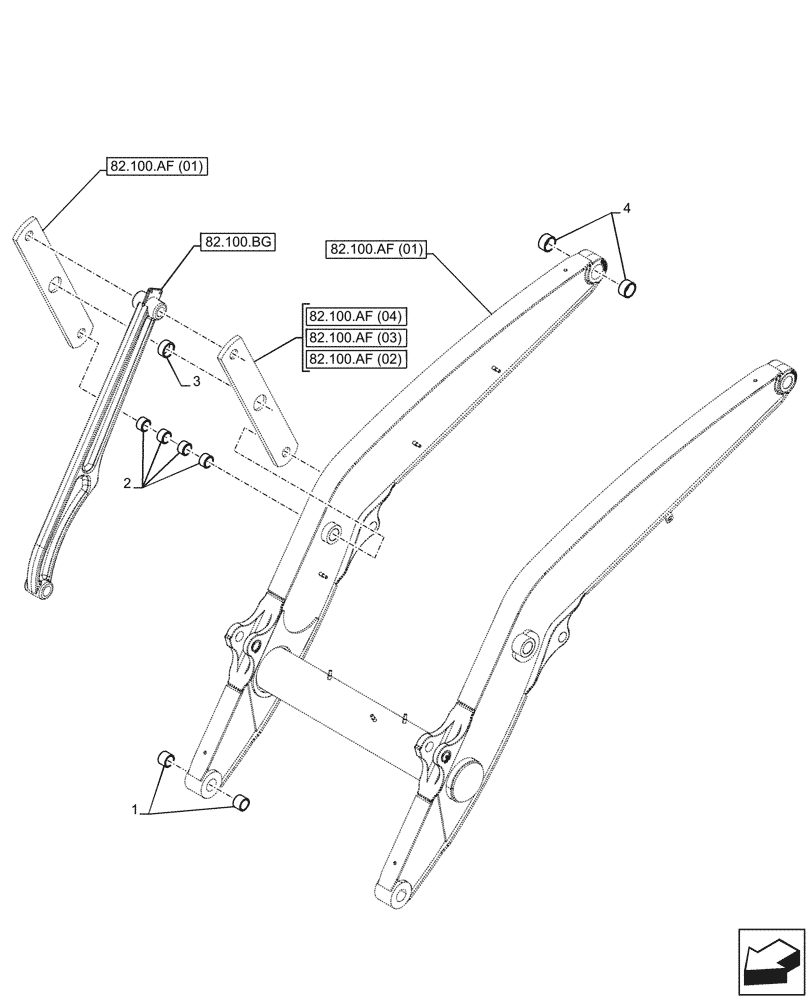

Схема запчастей Case 590SN - (82.100.AA) - ARM, PIVOT, BUSHING (82) - FRONT LOADER & BUCKET
82.100.af (02)
4
1
2
3
82.100.af (01)
82.100.af (04)
82.100.bg
82.100.af (01)
82.100.af (03)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

109268A1

BUSHING,40.3mm ID x 50mm OD x 35mm L

4шт.

2

100696A1

BUSHING,38.41mm ID x 47.65mm OD x 28.6mm L

8шт.

3

84218019

BUSHING,55.23mm ID x 64.97mm OD x 25.4mm L

55.23mm ID x 64.97mm OD x 25.4mm H

2шт.

4

D127542

BUSHING,50.2mm ID x 60mm OD x 30mm L

4шт.

Выбрано товаров: 4
