Запчасти Case 590SN (55.512.CL[11]) - 3-SPOOL, POWERSHIFT, LOADER, JOYSTICK, COMPONENTS (55) - ELECTRICAL SYSTEMS

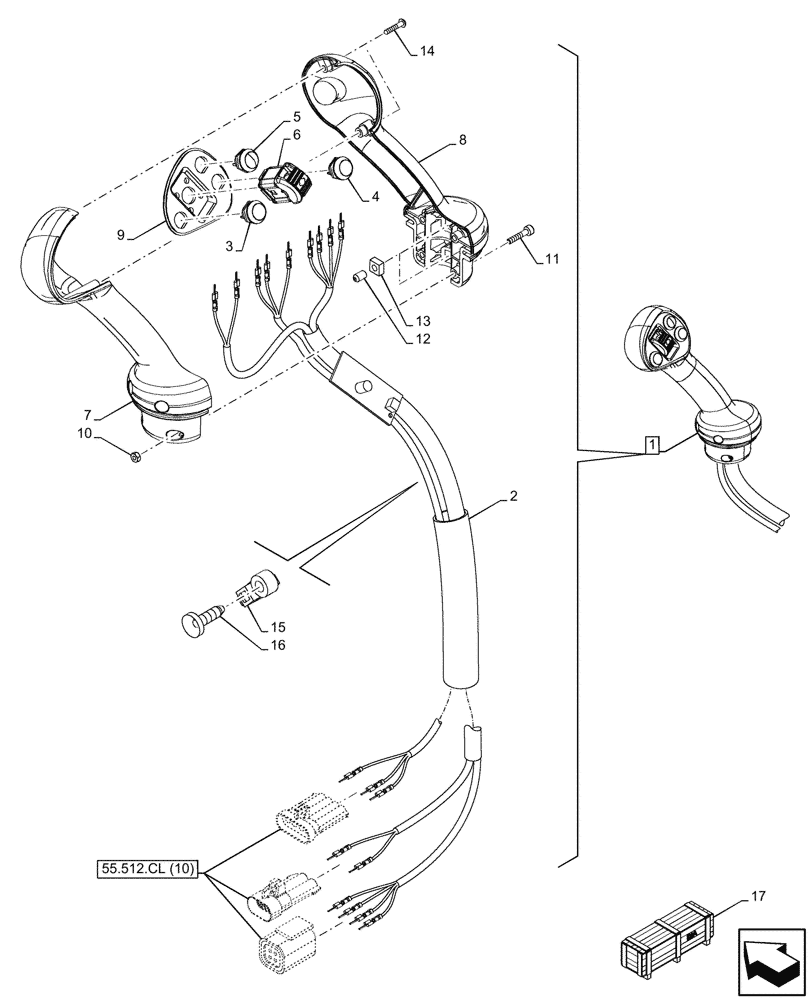

Схема запчастей Case 590SN - (55.512.CL[11]) - 3-SPOOL, POWERSHIFT, LOADER, JOYSTICK, COMPONENTS (55) - ELECTRICAL SYSTEMS
55.512.cl (10)
2
14
7
16
10
3
9
5
1
12
8
17
6
15
13
11
4

Артикул

Название

Примечание

Количество

1

87638044

JOYSTICK

ASSY, Loader Control 4 Button, Incl 2 - 16

1шт.

2

NSS

NOT SOLD SEPARAT

Harness, Incl in 1

1шт.

3

87658706

PUSH BUTTON

Declutch

1шт.

4

87658705

PUSH BUTTON

Differential Lock

1шт.

5

87658707

PUSH BUTTON SWITCH

Kick Down

1шт.

6

87387703

PUSH BUTTON

1шт.

7

87623339

HANDLE GRIP

LH

1шт.

8

87623338

HANDLE GRIP

RH

1шт.

9

87623342

BEZEL

1шт.

10

825-1404

NUT,M4, Cl 8

4шт.

11

86639294

HEX SOC SCREW,M4 x 0.7 x 20mm, Cl 8.8

4шт.

12

87019103

SET SCREW,M6 x 10mm

2шт.

13

87638350

NUT

2шт.

14

260-16312

SELF-TAP SCREW,Pan HD, M6 x 20mm

2шт.

15

87689189

CABLE TIE,110mm L

1шт.

16

87689338

SCREW,#4 - 24 x 3/8"

1шт.

17

47661785

CONSTRUCTION DIA

3 Spool, Mechanical Control, Powershift Transmission, Incl 1, 3, 4, 6 - 12, 14 - 16

1шт.

Valid for 580N Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

17

47661824

CONSTRUCTION DIA

3 Spool, Mechanical Control, Powershift Transmission, Incl 1, 3, 4, 6 - 12, 14 - 16

1шт.

Valid for 580SN, 580SN WT, 590SN Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

17

47661814

CONSTRUCTION DIA

3 Spool, Pilot Control, Powershift Transmission, Incl 1, 3, 4, 6 - 12, 14 - 16

1шт.

Valid for 580N Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

17

47788201

CONSTRUCTION DIA

3 Spool, Mechanical Control, Powershift Transmission, Incl 1, 3, 4, 6 - 12, 14 - 16

1шт.

Valid for 580SN, 580SN WT, 590SN Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
