(55.512.CL[08]) - 2-SPOOL, MECHANICAL, LOADER, JOYSTICK MOUNTING

Запчасти Case 590SN (55.512.CL[08]) - 2-SPOOL, MECHANICAL, LOADER, JOYSTICK MOUNTING (55) - ELECTRICAL SYSTEMS

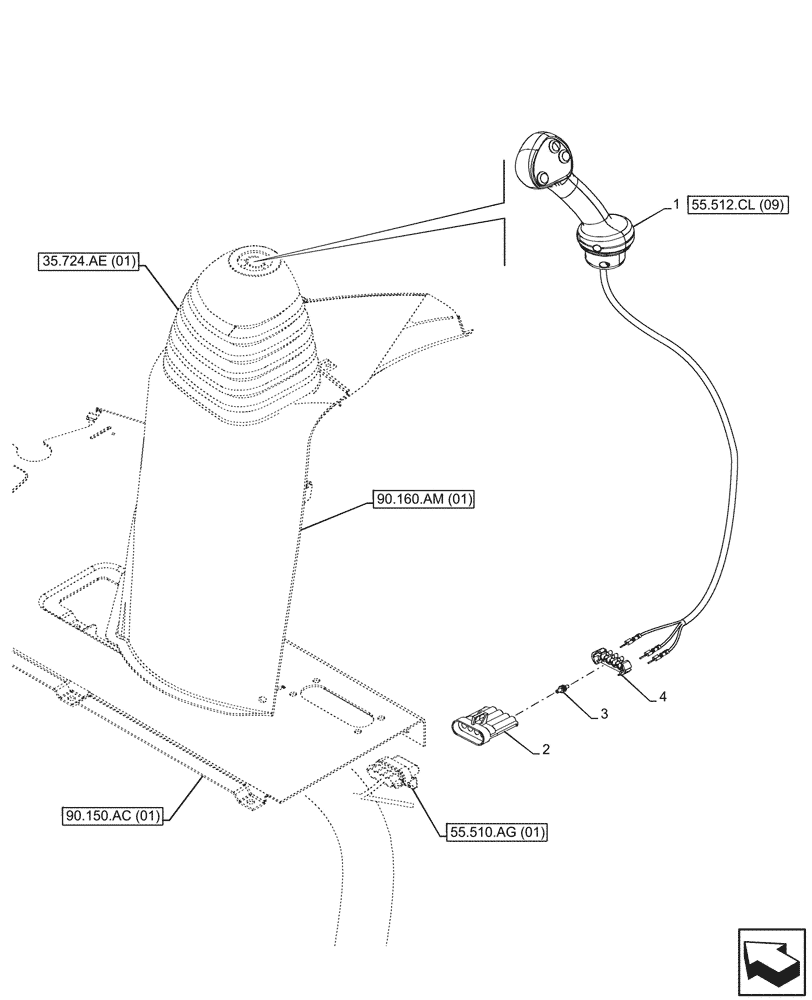

Схема запчастей Case 590SN - (55.512.CL[08]) - 2-SPOOL, MECHANICAL, LOADER, JOYSTICK MOUNTING (55) - ELECTRICAL SYSTEMS
90.160.am (01)
3
2
1
4
55.512.cl (09)
90.150.ac (01)
55.510.ag (01)
35.724.ae (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87638046

JOYSTICK

Loader Control 2 Button, ASSY

1шт.

2

256347A1

CONNECTOR, ELEC,Male, 4 Cavities

1шт.

3

298176A1

PLUG

1шт.

4

258616A1

LOCK

1шт.

Выбрано товаров: 4
