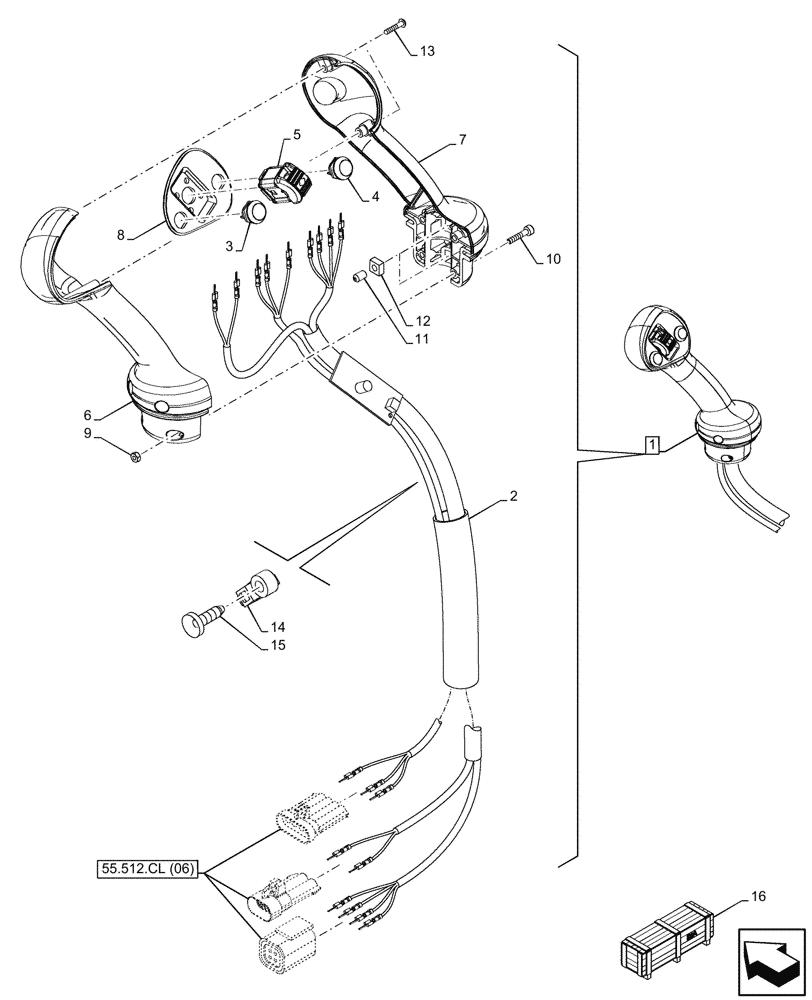

Запчасти Case 590SN (55.512.CL[07]) - 3-SPOOL, MECHANICAL, LOADER, JOYSTICK, COMPONENTS (55) - ELECTRICAL SYSTEMS

1

87638047

JOYSTICK

ASSY, Loader Control 3 Spool, Incl 2 - 15

1шт.

2

NSS

NOT SOLD SEPARAT

Harness, Incl in 1

1шт.

3

87658706

PUSH BUTTON

Declutch

1шт.

4

87658705

PUSH BUTTON

Differential Lock

1шт.

5

87387703

PUSH BUTTON

1шт.

6

87623339

HANDLE GRIP

LH

1шт.

7

87623338

HANDLE GRIP

RH

1шт.

8

NSS

NOT SOLD SEPARAT

Bezel, Incl in 1

1шт.

9

825-1404

NUT,M4, Cl 8

4шт.

10

86639294

HEX SOC SCREW,M4 x 0.7 x 20mm, Cl 8.8

4шт.

11

87019103

SET SCREW,M6 x 10mm

2шт.

12

87638350

NUT

2шт.

13

260-16312

SELF-TAP SCREW,Pan HD, M6 x 20mm

2шт.

14

87689189

CABLE TIE,110mm L

1шт.

15

87689338

SCREW,#4 - 24 x 3/8"

1шт.

16

47677200

CONSTRUCTION DIA

3 Spool, Mechanical Control, Incl 1, 3 - 7, 9 - 11, 13 - 15

1шт.

Valid for 580N EP, 580N Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

16

47677937

CONSTRUCTION DIA

3 Spool, Pilot Control, Incl 1, 3 - 7, 9 - 11, 13 - 15

1шт.

Valid for 580N EP, 580N Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

16

47661816

CONSTRUCTION DIA

3 Spool, Mechanical Control, Standard Transmission, Incl 1, 3 - 7, 9 - 11, 13 - 15

1шт.

Valid for 580SN, 580SN WT, 590SN Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

16

47661818

CONSTRUCTION DIA

3 Spool, Pilot Control, Standard Transmission, Incl 1, 3 - 7, 9 - 11, 13 - 15

1шт.

Valid for 580SN, 580SN WT, 590SN Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
