Запчасти Case 590SN (55.512.CL[05]) - 7-SPOOL, 8-SPOOL, PILOT CONTROLS, RIGHT, RH, JOYSTICK, BUTTON (55) - ELECTRICAL SYSTEMS

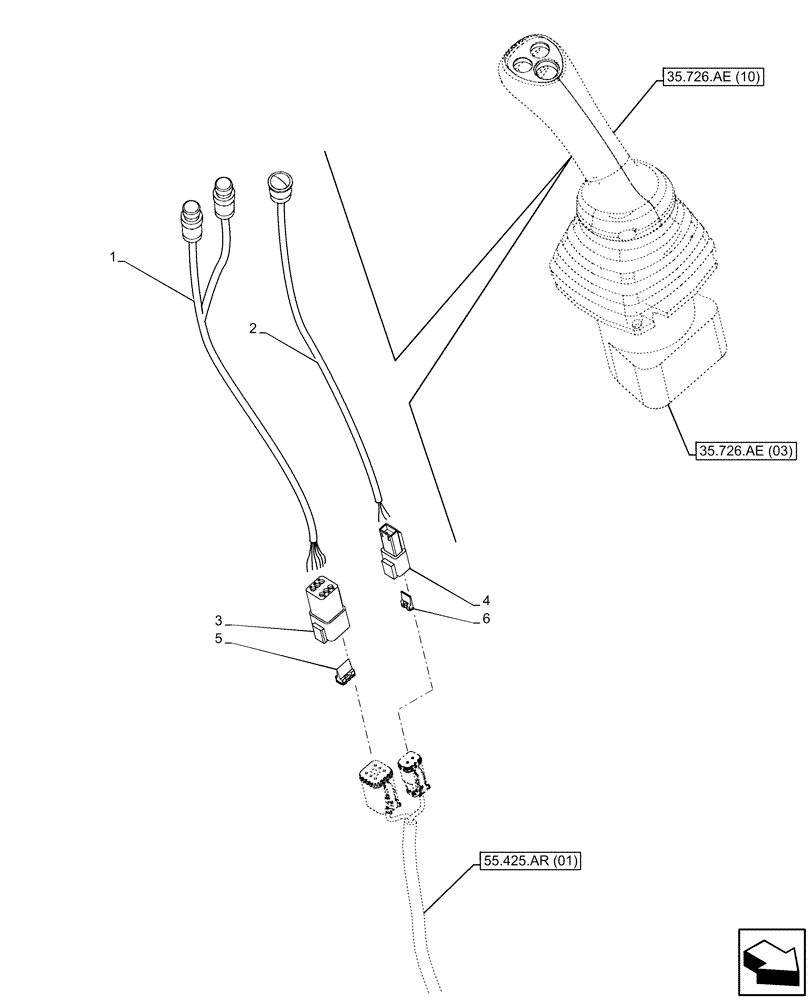

Схема запчастей Case 590SN - (55.512.CL[05]) - 7-SPOOL, 8-SPOOL, PILOT CONTROLS, RIGHT, RH, JOYSTICK, BUTTON (55) - ELECTRICAL SYSTEMS
35.726.ae (10)
2
6
3
5
1
4
35.726.ae (03)
55.425.ar (01)

Артикул

Название

Примечание

Количество

1

84134639

SWITCH

Push Button Proportional

2шт.

2

87546922

SWITCH ASSY

1шт.

3

225350C1

ELEC CONNECTOR,Male, 6 Pin

1шт.

4

225315C1

ELEC CONNECTOR,Male, 2 Pin

1шт.

5

225353C1

WEDGE,Lock, Black

1шт.

6

225318C1

ELEC CONNECTOR,2 Pin

1шт.

Выбрано товаров: 6
