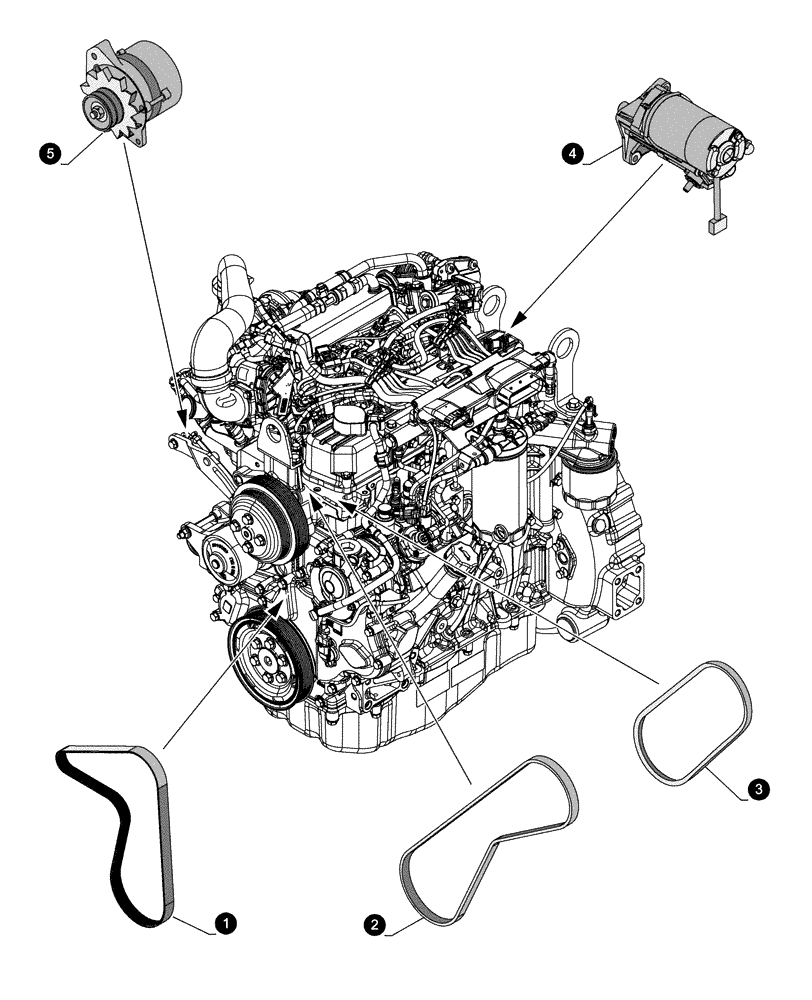

Запчасти Case 590SN (05.100.04[02]) - MAINTENANCE PARTS - STARTER MOTOR, ALTERNATOR, BELTS (05) - SERVICE & MAINTENANCE

1

84278184

BELT,28.28mm W x 1470mm L, 8 Ribs

Mechanical Fan Drive

1шт.

Valid with 580N-BACKHOE LOADER - TIER 3 NRC, 580SN-BACKHOE LOADER - TIER 3 NRC, 580SN WT-BACKHOE LOADER, WIDE TRACK - TIER 3 NRC Models

1шт.

1

84278183

BELT,28.28mm W x 1440mm L, 8 Ribs

Viscous Fan Drive

1шт.

Valid with 590SN-BACKHOE LOADER - TIER 3 NRC Models

1шт.

2

87548076

BELT,0.55" W x 47.95" L, 4 Ribs

A/C Compressor

1шт.

Valid with 580SN-BACKHOE LOADER - TIER 3 NRC, 580SN WT-BACKHOE LOADER, WIDE TRACK - TIER 3 NRC, 590SN-BACKHOE LOADER - TIER 3 NRC Models

1шт.

3

87393292

V-BELT,13.5 mm W x 1206.5mm L

A/C Compressor

1шт.

Valid with 580N-BACKHOE LOADER - TIER 3 NRC Models

1шт.

4

86992395

STARTER MOTOR,12V, 2.7kW

On Engine

1шт.

5

84416587

ALTERNATOR,12V, 120A, W/ Pulley

On Engine

1шт.
