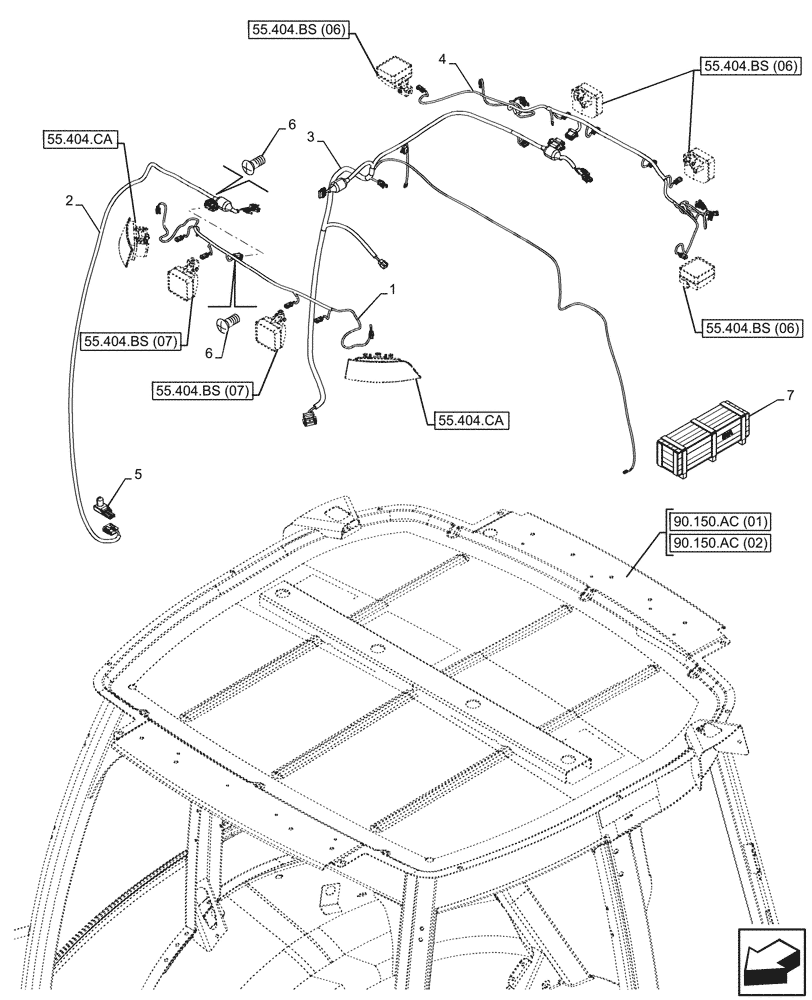

Запчасти Case 590SN (55.510.AH) - VAR - 747853, 747854, 747855 - CAB ROOF, WIRE HARNESS (55) - ELECTRICAL SYSTEMS
55.404.ca
5
4
6
6
3
2
1
7
90.150.ac (02)
90.150.ac (01)
55.404.bs (07)
55.404.bs (07)
55.404.bs (06)
55.404.bs (06)
55.404.bs (06)
55.404.ca
№
Артикул
Название
Примечание
Количество
1
47533355
WIRE HARNESS
1шт.
2
47533371
WIRE HARNESS
1шт.
3
47533373
WIRE HARNESS
1шт.
4
47533370
WIRE HARNESS
1шт.
5
87707841
CLIP,Hole DIA 6.35mm
1шт.
6
84415413
SCREW,Pan, 10-16" x 5/8 C/R, SST
4шт.
7
47605397
CONSTRUCTION DIA
Canopy Conversion Narrow, Incl 2
1шт.
Valid for 580N, 580SN Model Only
1шт.
To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown
1шт.
7
47605399
CONSTRUCTION DIA
Canopy Conversion Wide, Incl 2
1шт.
Valid for 580SN WT, 590SN Models Only
1шт.
To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown
1шт.
Выбрано товаров: 12
