(55.425.AS[01]) - VAR - 423078, 747669 - BACKHOE ARM, PILOT CONTROLS, STABILIZER, SWITCH

Запчасти Case 590SN (55.425.AS[01]) - VAR - 423078, 747669 - BACKHOE ARM, PILOT CONTROLS, STABILIZER, SWITCH (55) - ELECTRICAL SYSTEMS

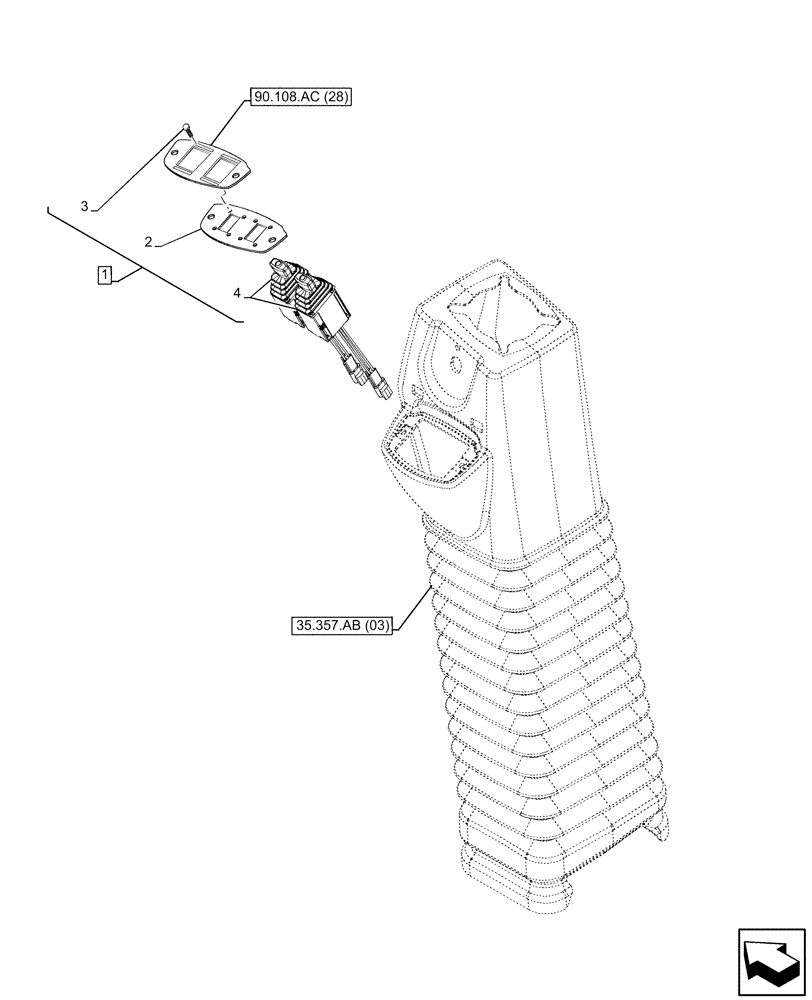

Схема запчастей Case 590SN - (55.425.AS[01]) - VAR - 423078, 747669 - BACKHOE ARM, PILOT CONTROLS, STABILIZER, SWITCH (55) - ELECTRICAL SYSTEMS
35.357.ab (03)
4
1
2
3
90.108.ac (28)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87303182

SWITCH ASSY

Stabilizer, Single Axis, Incl 2 - 5

1шт.

See Switch Assy Components also in Figure 90.108.AC (28)

1шт.

2

87435381

MOUNTING PLATE

1шт.

3

87303784

SCREW,Phil Pan Hd, M3 x 8mm, Cl 4.8, Full Thd

8шт.

4

86988086

JOYSTICK

Stabilizer

2шт.

Выбрано товаров: 5
