(55.404.BS[02]) - VAR - 423000, 442082 - CANOPY, WORK LIGHT, REAR

Запчасти Case 590SN (55.404.BS[02]) - VAR - 423000, 442082 - CANOPY, WORK LIGHT, REAR (55) - ELECTRICAL SYSTEMS

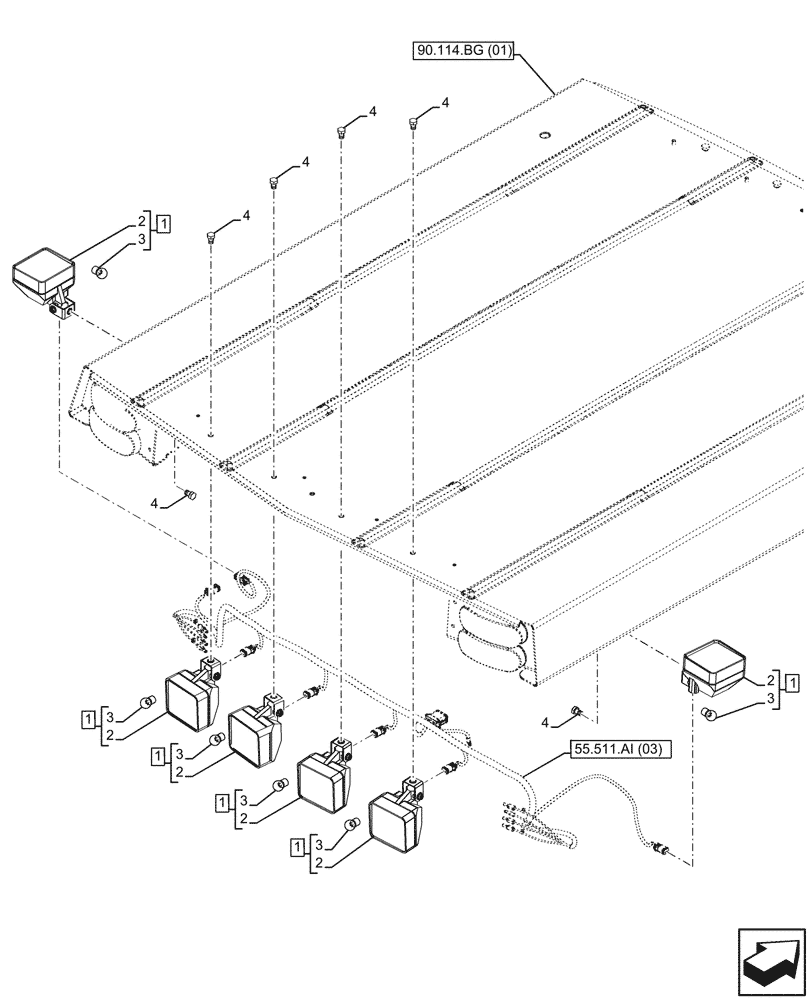

Схема запчастей Case 590SN - (55.404.BS[02]) - VAR - 423000, 442082 - CANOPY, WORK LIGHT, REAR (55) - ELECTRICAL SYSTEMS
55.511.ai (03)
4
2
2
4
4
4
3
1
3
2
1
1
2
2
3
1
3
3
4
1
2
4
3
1
90.114.bg (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87584890

LIGHT ASSY.,Halogen, 12V, 55W, Clear

Work, ASSY, Incl 2, 3

6шт.

1

47682620

WORK LAMP,Flood, LED, 12V

LAMP, WORK, LED

6шт.

2

NSS

NOT SOLD SEPARAT

Work Light, Incl in 1

6шт.

3

1312210C2

BULB,Halogen H3, 12V, 55W

12V, 55W

6шт.

4

128312A1

FLANGE BOLT,Hvy Hex, M10 x 1.5 x 15mm, Gr 8.8

6шт.
