(55.100.DO[07]) - VAR - 423060, 423061, 423062 - SIDE PANEL, RH, WIRE HARNESS, DECAL, RELAY, FUSE BOX

Запчасти Case 590SN (55.100.DO[07]) - VAR - 423060, 423061, 423062 - SIDE PANEL, RH, WIRE HARNESS, DECAL, RELAY, FUSE BOX (55) - ELECTRICAL SYSTEMS

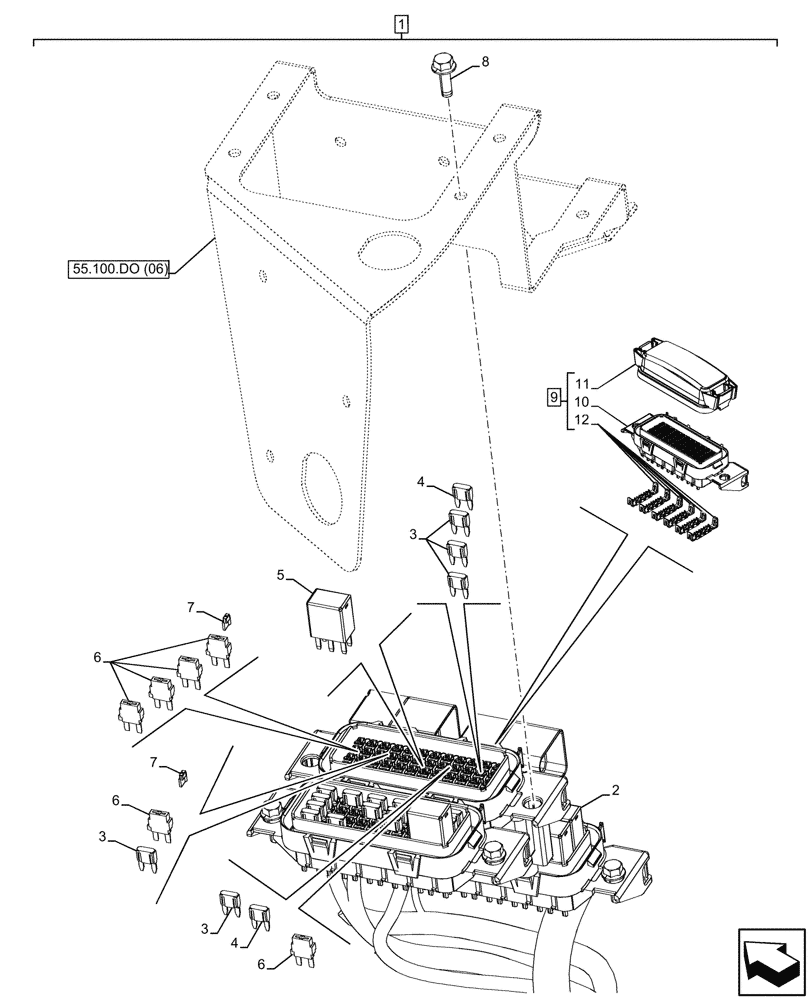

Схема запчастей Case 590SN - (55.100.DO[07]) - VAR - 423060, 423061, 423062 - SIDE PANEL, RH, WIRE HARNESS, DECAL, RELAY, FUSE BOX (55) - ELECTRICAL SYSTEMS
55.100.do (06)
4
7
3
8
11
4
6
10
6
12
1
2
7
5
6
9
3
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84292425

HARNESS

ASSY, Side Console, Incl 2 - 12

1шт.

See Side Console Wire Harness Components also in Figure 55.100.DO 06, 55.100.DO 08, 90.108.AA 03

1шт.

2

NSS

NOT SOLD SEPARAT

Harness, Incl in 1

1шт.

3

121410A1

FUSE,5A, Mini, Tan

5шт.

4

121412A1

FUSE,10A, Mini, Red

2шт.

5

87655334

RELAY,12V, 35A, Micro

1шт.

6

416569A1

DIODE ELEMENT,7300W

6шт.

7

84292399

KEY

6шт.

8

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

2шт.

9

84380518

FUSE BOX

ASSY, Incl 10 - 12

1шт.

10

NSS

NOT SOLD SEPARAT

Support, Incl in 9

1шт.

11

84404932

COVER

1шт.

12

84342278

CONNECTING BLOCK

6шт.

Выбрано товаров: 13
