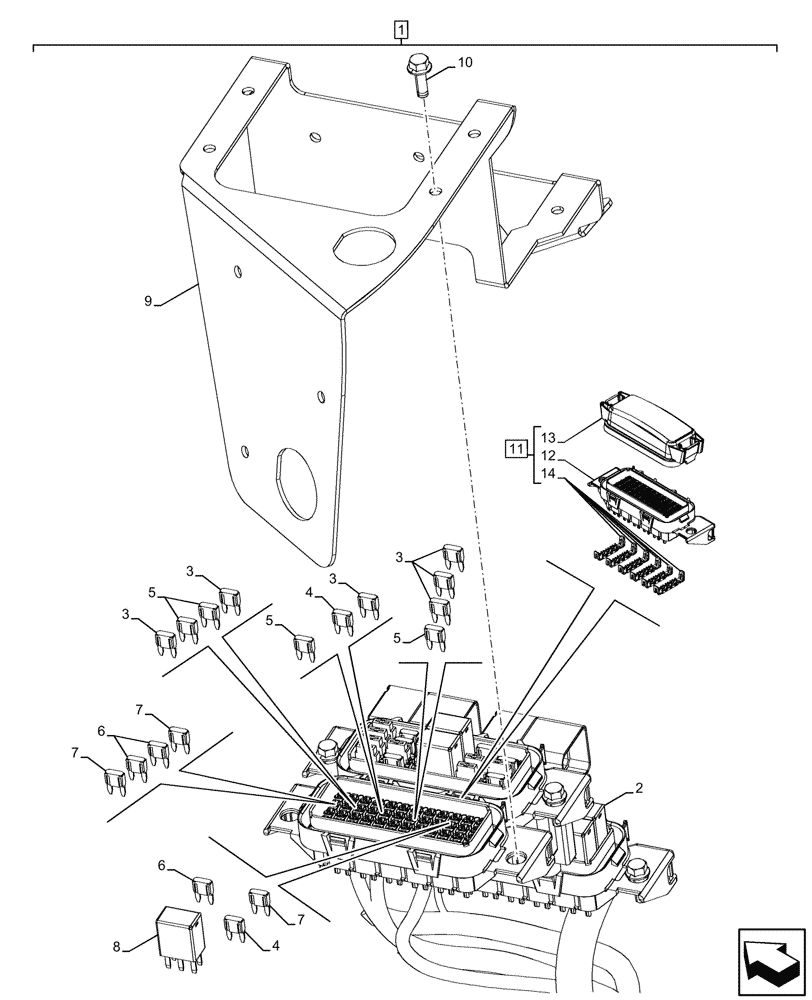

Запчасти Case 590SN (55.100.DO[06]) - VAR - 423060, 423061, 423062 - SIDE PANEL, RH, WIRE HARNESS, DECAL, RELAY, FUSE BOX (55) - ELECTRICAL SYSTEMS
![Схема запчастей Case 590SN - (55.100.DO[06]) - VAR - 423060, 423061, 423062 - SIDE PANEL, RH, WIRE HARNESS, DECAL, RELAY, FUSE BOX (55) - ELECTRICAL SYSTEMS](https://partsell.ru/storage/images/casece/5349042.png)
11
3
3
2
10
7
9
8
5
5
7
12
13
6
7
4
3
6
1
3
14
4
5
№
Артикул
Название
Примечание
Количество
1
84292425
HARNESS
ASSY, Side Console, Incl 2 - 14
1шт.
See Side Console Wire Harness Components also in Figure 55.100.DO 07, 55.100.DO 08, 90.108.AA 03
1шт.
2
NSS
NOT SOLD SEPARAT
Harness, Incl in 1
1шт.
3
121410A1
FUSE,5A, Mini, Tan
6шт.
4
121411A1
FUSE,7.5A, Mini, Brown
2шт.
5
121412A1
FUSE,10A, Mini, Red
4шт.
6
121413A1
FUSE,15A, Mini, Blue
3шт.
7
121416A1
FUSE,30A, Mini, Green
3шт.
8
87655334
RELAY,12V, 35A, Micro
1шт.
9
84292270
BRACKET
Side Console Wire Harness
1шт.
10
845-6020
BOLT,Hvy Hex, M6 x 20mm, Cl 8.8
2шт.
11
84380518
FUSE BOX
ASSY, Incl 12 - 14
1шт.
12
NSS
NOT SOLD SEPARAT
Support, Incl in 11
1шт.
13
84404932
COVER
1шт.
14
84342278
CONNECTING BLOCK
6шт.
Выбрано товаров: 15
