(55.100.DO[05]) - VAR - 423058, 423059 - SIDE PANEL, RH, WIRE HARNESS, RELAY, FUSE BOX

Запчасти Case 590SN (55.100.DO[05]) - VAR - 423058, 423059 - SIDE PANEL, RH, WIRE HARNESS, RELAY, FUSE BOX (55) - ELECTRICAL SYSTEMS

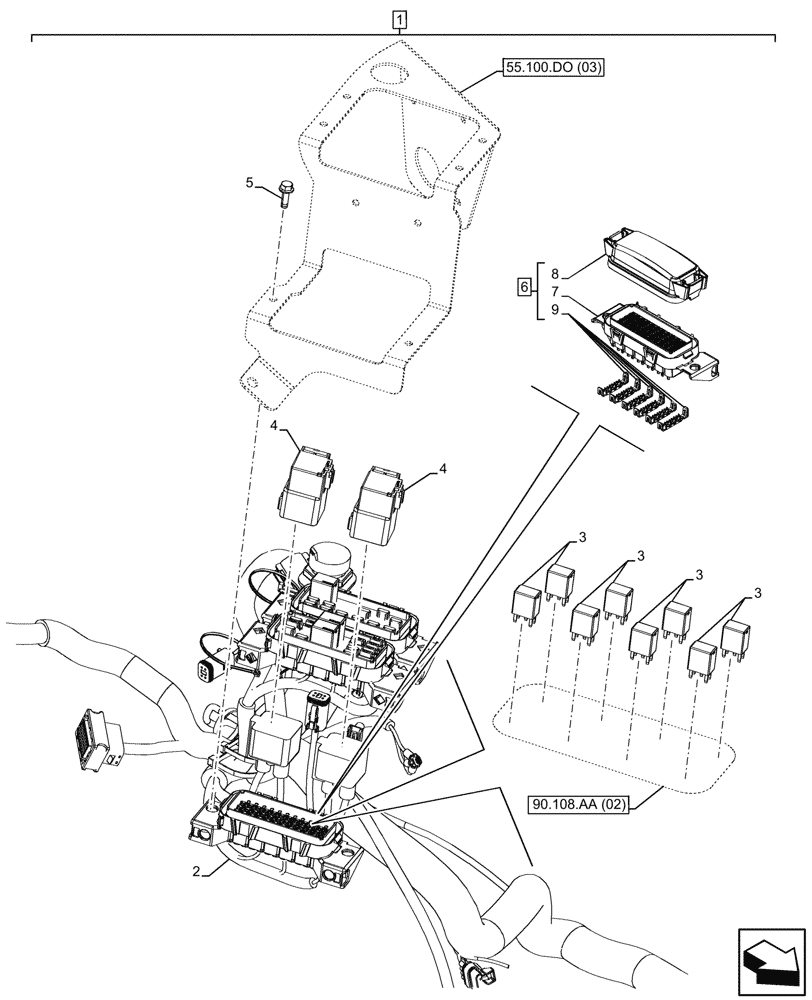

Схема запчастей Case 590SN - (55.100.DO[05]) - VAR - 423058, 423059 - SIDE PANEL, RH, WIRE HARNESS, RELAY, FUSE BOX (55) - ELECTRICAL SYSTEMS
55.100.do (03)
3
3
6
2
7
5
4
3
8
3
9
4
1
90.108.aa (02)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84292421

WIRE HARNESS

ASSY, Side Console, STD Transmission, Incl 2 - 9

1шт.

See Side Console Wire Harness Components also in Figure 55.100.DO 03, 55.100.DO 04, 90.108.AA 02

1шт.

2

NSS

NOT SOLD SEPARAT

Harness, Incl in 1

1шт.

3

87655334

RELAY,12V, 35A, Micro

8шт.

4

84271717

RELAY,12V, 50A

2шт.

5

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

2шт.

6

84380518

FUSE BOX

ASSY, Incl 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

Support, Incl in 6

1шт.

8

84404932

COVER

1шт.

9

84342278

CONNECTING BLOCK

6шт.
