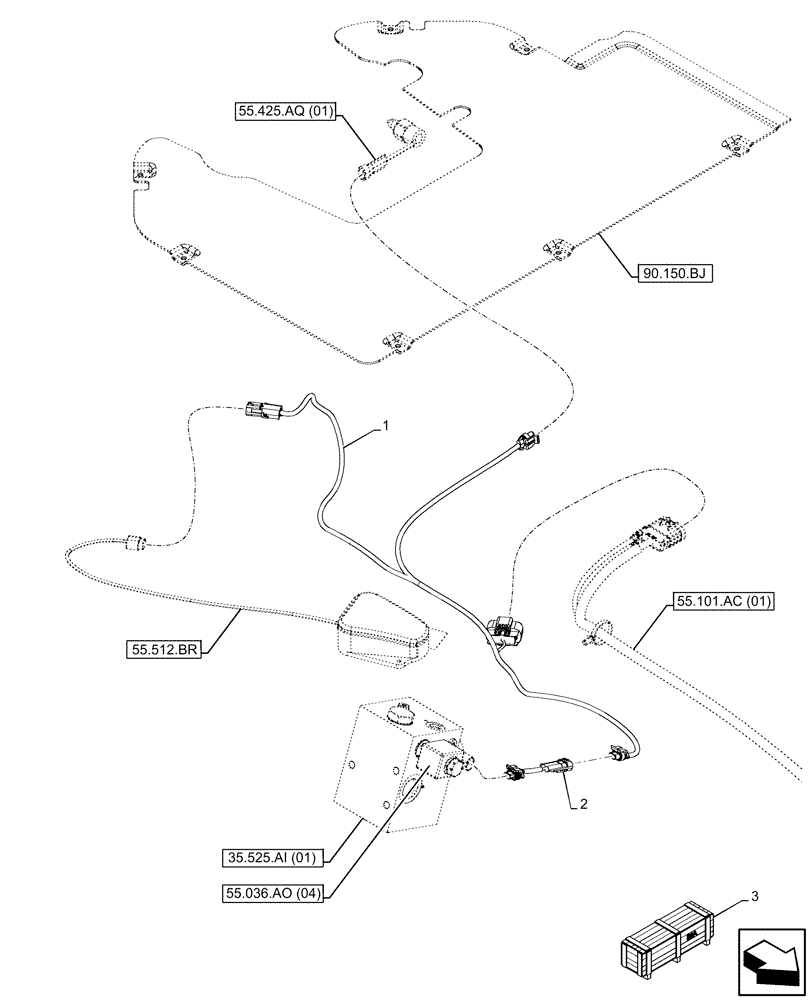

Запчасти Case 590SN (55.100.AI[01]) - VAR - 423083 - HARNESS, HAMMER, MECHANICAL, CONTROL (55) - ELECTRICAL SYSTEMS

1

84292391

WIRE HARNESS

Combo Auxiliary, Mechanical Control

1шт.

2

84386573

WIRE HARNESS

Jumper

1шт.

3

84546983

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Mechanical Control, Standard Dipper, Incl 1, 2

1шт.

Valid for 590SN Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

3

84546980

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Mechanical Control, Standard Dipper, Incl 1, 2

1шт.

Valid for 580N, 580SN, 580SN WT Models Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

3

84546985

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Mechanical Control, Extendable Dipper, Incl 1, 2

1шт.

Valid for 590SN Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

3

84546982

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Mechanical Control, Extendable Dipper, Incl 1, 2

1шт.

Valid for 580N, 580SN, 580SN WT Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

3

84396879

CONSTRUCTION DIA

Uni-Aux to Combo Auxiliary, Mechanical Control, Extendable Dipper, Incl 1

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

3

84396878

CONSTRUCTION DIA

Uni-Aux to Combo Auxiliary, Mechanical Control, Standard Dipper, Incl 1

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
