(55.036.AO[02]) - VAR - 423080 - VARIABLE DELIVERY HYDRAULIC PUMP, DIODE, SUPPRESSOR

Запчасти Case 590SN (55.036.AO[02]) - VAR - 423080 - VARIABLE DELIVERY HYDRAULIC PUMP, DIODE, SUPPRESSOR (55) - ELECTRICAL SYSTEMS

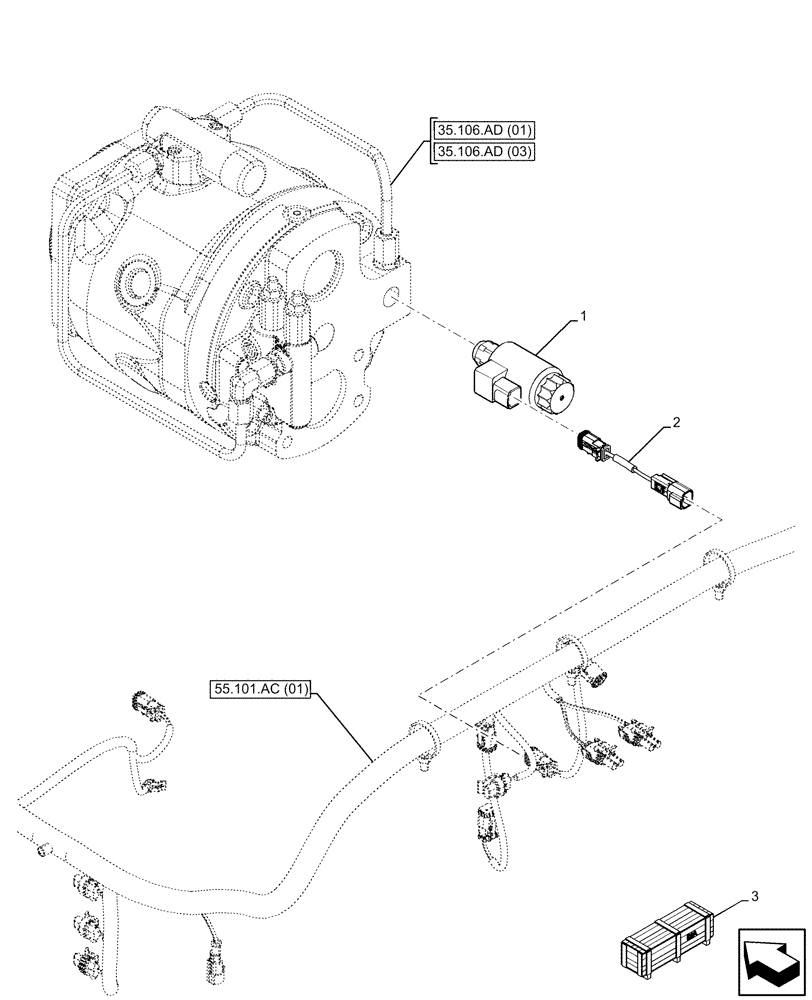

Схема запчастей Case 590SN - (55.036.AO[02]) - VAR - 423080 - VARIABLE DELIVERY HYDRAULIC PUMP, DIODE, SUPPRESSOR (55) - ELECTRICAL SYSTEMS
35.106.ad (03)
1
3
2
55.101.ac (01)
35.106.ad (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84312179

CONTROL VALVE

1шт.

2

84292404

HARNESS

Suppressor Diode

1шт.

3

84561133

CONSTRUCTION DIA

Power Lift, Incl 1

1шт.

Valid for 580SN Model Only

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 5
