Запчасти Case 590SN (55.024.AH[01]) - VAR - 423058, 423059 - TRANSMISSION, POWERSHUTTLE, PARKING BRAKE, SOLENOID VALVE (55) - ELECTRICAL SYSTEMS

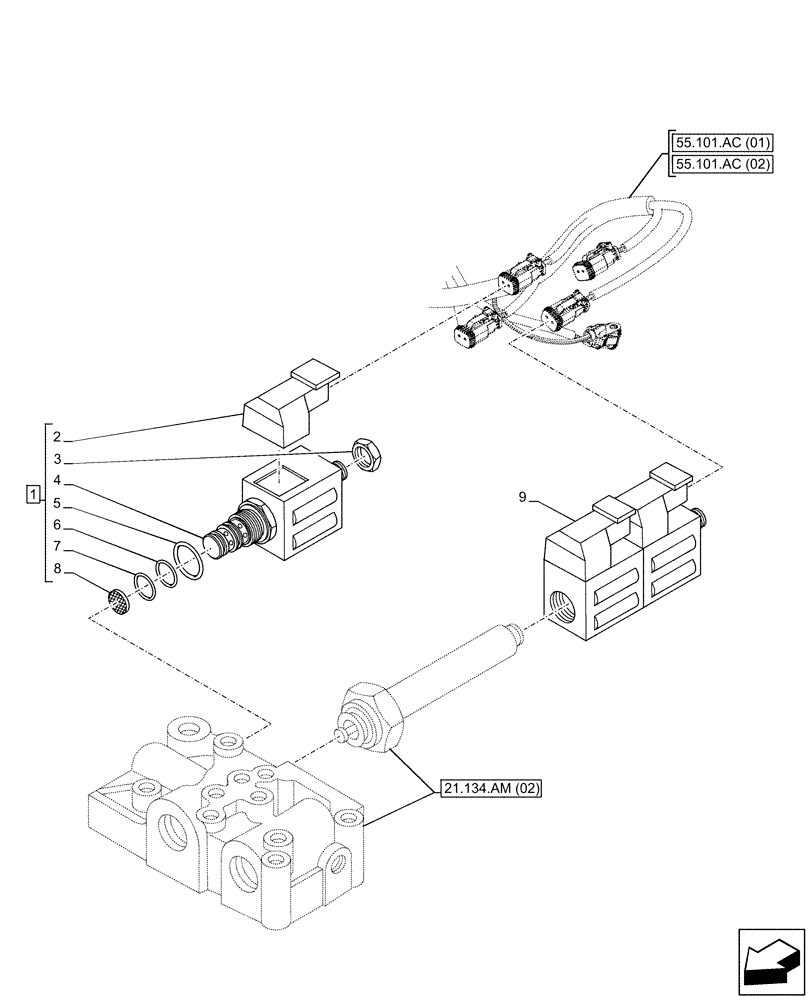

Схема запчастей Case 590SN - (55.024.AH[01]) - VAR - 423058, 423059 - TRANSMISSION, POWERSHUTTLE, PARKING BRAKE, SOLENOID VALVE (55) - ELECTRICAL SYSTEMS
21.134.am (02)
2
9
5
8
1
4
7
3
6
55.101.ac (02)
55.101.ac (01)

Артикул

Название

Примечание

Количество

1

349295A1

SOLENOID VALVE

Coil, Molded Connector, 2GPM, ASSY, Incl 2 - 8

1шт.

2

298614A1

SOLENOID

Coil

1шт.

3

349292A1

JAM NUT,Hex, 1/2" - 2, RH Thd

1шт.

4

349291A1

CARTRIDGE

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

7

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

8

196096A1

SCREEN

Relief Valve

1шт.

9

87456900

SERVICE KIT

Solenoid with Jumper (Used for Fwd/Rev)

1шт.

Выбрано товаров: 9
