(39.129.AH) - STABILIZER

Запчасти Case 590SN (39.129.AH) - STABILIZER (39) - FRAMES AND BALLASTING

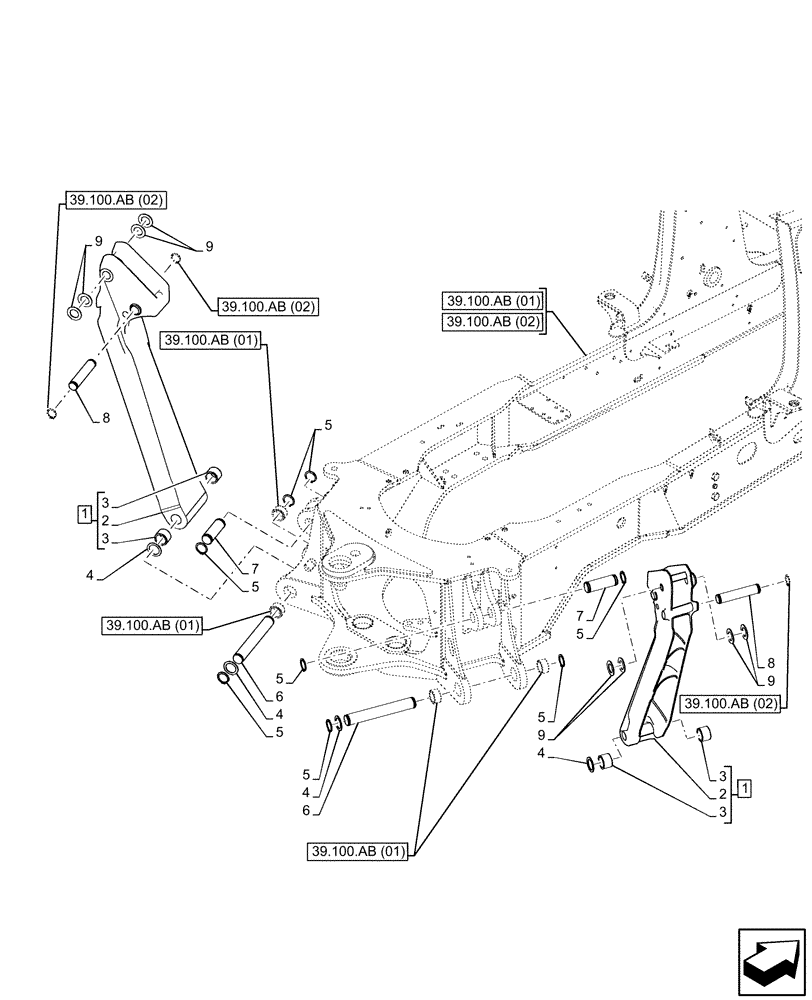

Схема запчастей Case 590SN - (39.129.AH) - STABILIZER (39) - FRAMES AND BALLASTING
39.100.ab (01)
7
4
1
8
8
9
2
6
5
5
9
5
5
4
7
3
3
3
2
1
3
5
6
4
4
9
5
9
5
39.100.ab (02)
39.100.ab (02)
39.100.ab (02)
39.100.ab (02)
39.100.ab (01)
39.100.ab (01)
39.100.ab (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84308123

STABILIZER

ASSY, Incl 2 (Qty 1), 3 (Qty 2)

2шт.

2

NSS

NOT SOLD SEPARAT

Stabilizer, Incl in 1

2шт.

3

84229922

BUSHING,55.19mm ID x 65mm OD x 38mm L

4шт.

4

84231927

SHIM,57mm ID x 70mm OD x 2.77mm Thk

4шт.

5

84233536

RING,55mm ID, Ext

8шт.

6

84243665

PIN,54.9mm OD x 305.5mm L

2шт.

7

84243667

PIN,54.9mm OD x 148mm L

2шт.

8

R26725

PIN,152.4mm OD x 44.45mm L

2шт.

9

D143406

WASHER,38.23mm ID x 63.88mm OD x 2.9mm Thk

8шт.

Выбрано товаров: 9
