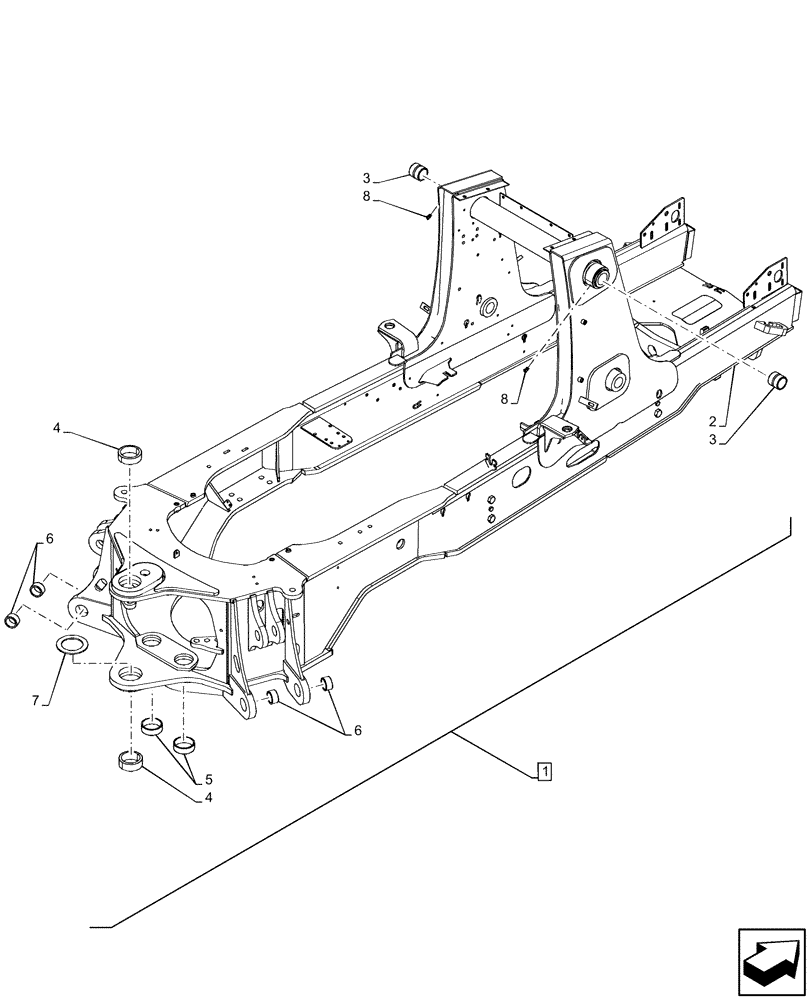

Запчасти Case 590SN (39.100.AB[01]) - CHASSIS (39) - FRAMES AND BALLASTING

1

47556755

FRAME

ASSY, Incl 2, 4 - 8

1шт.

See Chassis Component also in Figures 39.100.AB (02)

1шт.

2

NSS

NOT SOLD SEPARAT

Frame, Incl in 1

1шт.

3

84217542

BUSHING,50.23mm ID x 60mm OD x 55mm L

2шт.

4

84226811

BUSHING,80.19mm ID x 100mm OD x 63mm L

2шт.

5

114318A1

BUSHING,80.19mm ID x 90mm OD x 29.35mm L

2шт.

6

84326305

BUSHING,55.25mm ID x 67.7mm OD x 29mm L

4шт.

7

220413A1

SPACER,93mm ID x 135mm OD x 5mm Thk

1шт.

8

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.
