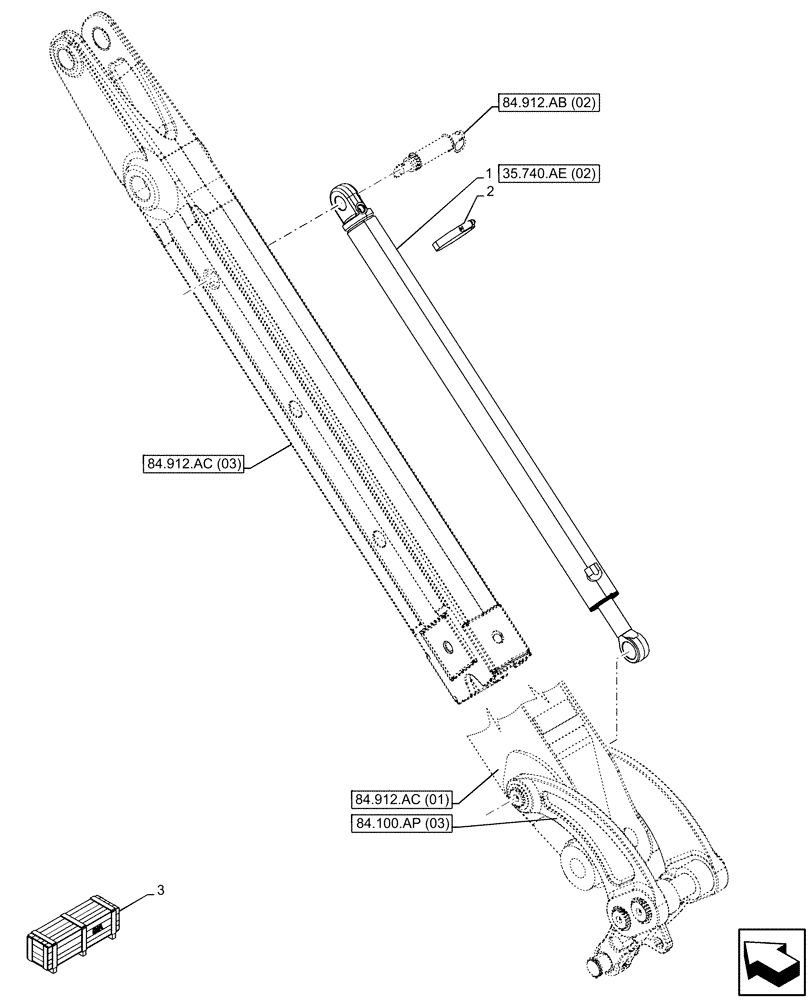

Запчасти Case 590SN (35.740.AE[01]) - VAR - 423076 - EXTENDABLE DIPPER, CYLINDER (35) - HYDRAULIC SYSTEMS

1

84421679

HYDRAULIC CYLINDER,Double Acting, 44.4mm Rod, 76.04mm Bore, 1220mm Stroke

ASSY

1шт.

2

214-3172

HOSE CLAMP,3-3/4" - 4-5/8", HD Worm

1шт.

3

47520387

CONSTRUCTION DIA

Convert Standard Dipper to Extendable Dipper, Foot Swing Control, Incl 1

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

3

47520393

CONSTRUCTION DIA

Convert Standard Dipper to Extendable Dipper, Hand Swing Control, Incl 1

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
