Запчасти Case 590SN (35.738.AE[03]) - VAR - 423076 - BACKHOE BUCKET, EXTENDABLE DIPPER, CYLINDER LINES (35) - HYDRAULIC SYSTEMS

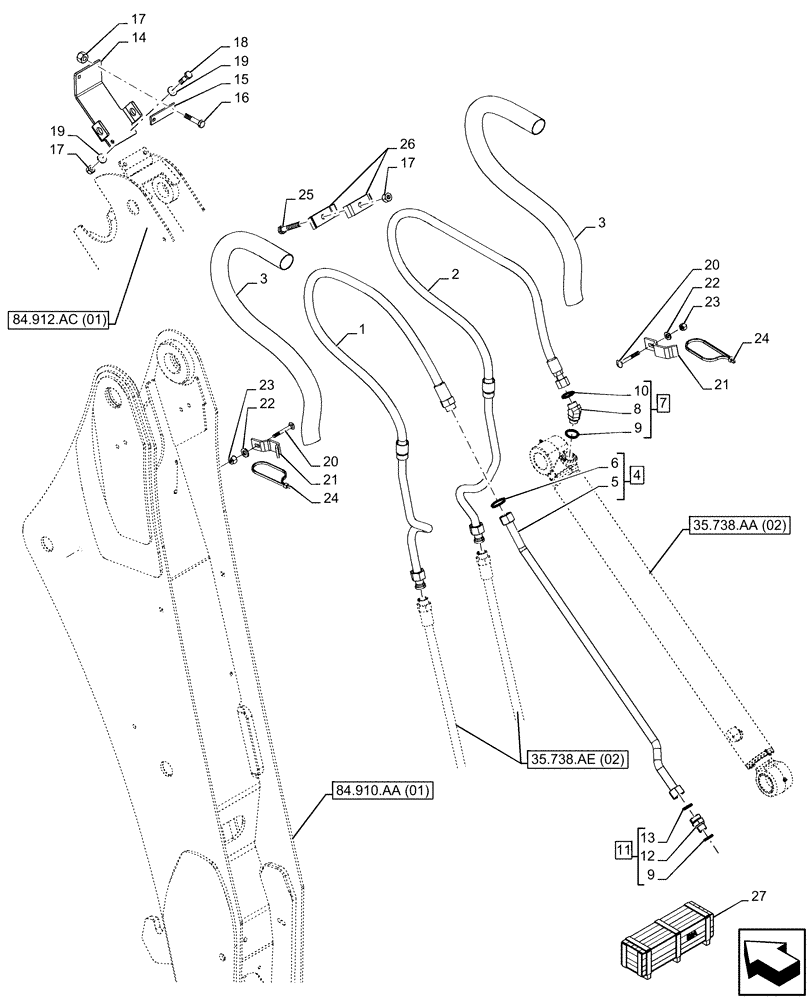

Схема запчастей Case 590SN - (35.738.AE[03]) - VAR - 423076 - BACKHOE BUCKET, EXTENDABLE DIPPER, CYLINDER LINES (35) - HYDRAULIC SYSTEMS
35.738.aa (02)
12
27
22
21
3
19
3
23
18
10
6
9
17
9
2
21
20
20
22
7
13
17
23
17
8
14
4
25
5
24
1
26
15
16
19
24
11
84.910.aa (01)
84.912.ac (01)
35.738.ae (02)

Артикул

Название

Примечание

Количество

1

84280711

HYD TUBE

Bucket Cylinder Rod

1шт.

2

84283817

HYD TUBE

Bucket Cylinder Head

1шт.

3

84373396

SLEEVE,1277mm L

2шт.

4

84305542

TUBE

ASSY, Bucket Cylinder Rod, Incl 5, 6

1шт.

5

NSS

NOT SOLD SEPARAT

Tube, Incl in 4

1шт.

6

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1шт.

7

201-317

ELBOW,45 Degree, 1 3/16"-12 x 1 1/16"-12. Adj, ORFS

ASSY, Incl 8, 9 (Qty 1), 10

1шт.

8

NSS

NOT SOLD SEPARAT

45° Elbow, Incl in 7

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

10

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

11

201-130

HYD CONNECTOR,1 7/16"-12 ORFS x 1 1/16"-12 ORB

ASSY, Incl 9 (Qty 1), 12, 13

1шт.

12

NSS

NOT SOLD SEPARAT

Connector, Incl in 11

1шт.

13

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

14

84371413

BRACKET

Clamp Mount

1шт.

15

101479A1

SUPPORT

1шт.

16

120113

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

2шт.

17

412141

NUT,M10 x 1.5, Cl 8

5шт.

18

120112

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

19

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

20

300660

CARRIAGE BOLT,M8 x 1.25 x 70mm, Cl 8.8

2шт.

21

84284084

CLAMP

2шт.

22

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

23

412250

NUT,M8 x 1.25, Cl 8

2шт.

24

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

25

120071

BOLT,Hex, M10 x 65, 8.8

1шт.

26

D143846

CLAMP

2шт.

27

47520387

CONSTRUCTION DIA

Convert Standard Dipper to Extendable Dipper, Foot Swing, Incl 1 - 3, 14 - 25

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

27

47520393

CONSTRUCTION DIA

Convert Standard Dipper to Extendable Dipper, Hand Swing, Incl 1 - 3, 14 - 25

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

Выбрано товаров: 30
