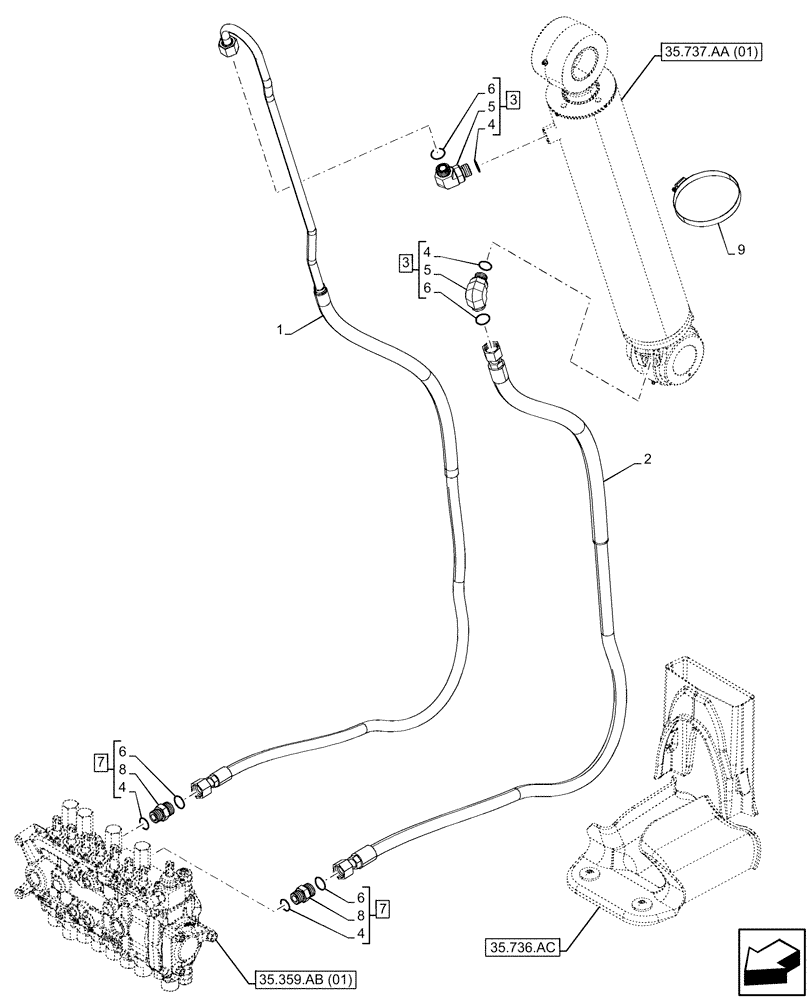

Запчасти Case 590SN (35.737.AE) - DIPPER, CYLINDER, BOOM, LINE (35) - HYDRAULIC SYSTEMS

1

84323406

HYD TUBE

Dopper Cylinder Rod

1шт.

2

84281984

HYDRAULIC HOSE,19mm ID x 2268mm L

Dipper Cylinder Head, 2268mm

1шт.

3

9846848

90 ELBOW,1-3/16"-12 ORFS x 1-1/16"-12 ORB

ASSY, Incl 4 (Qty 1), 5 (Qty 1), 6 (Qty 1)

2шт.

4

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

4шт.

5

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 3

2шт.

6

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

4шт.

7

9840535

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

ASSY, Incl 4 (Qty 1), 6 (Qty 1), 8 (Qty 1)

2шт.

8

NSS

NOT SOLD SEPARAT

Connector, Incl in 7

2шт.

9

214-31104

HOSE CLAMP,5-3/4" - 6-5/8", HD Worm

2шт.
