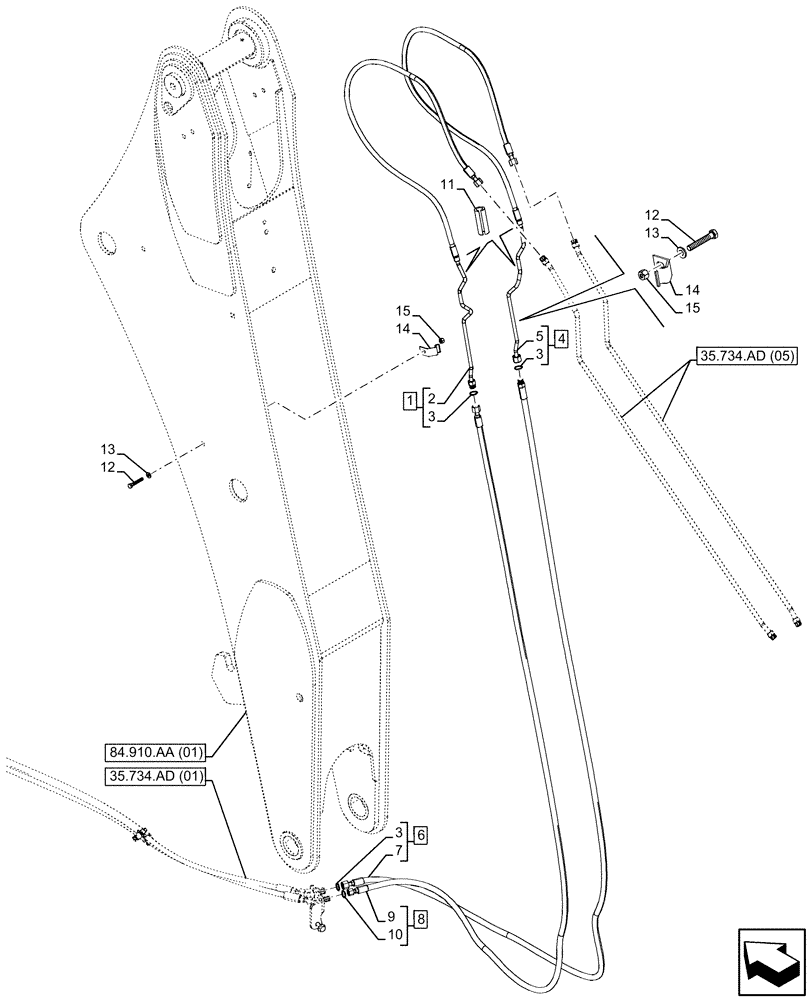

Запчасти Case 590SN (35.734.AD[05]) - QUICK COUPLER, VALVE, HYDRAULIC LINE, EXTENDABLE DIPPER (35) - HYDRAULIC SYSTEMS

1

84263547

HYD TUBE

ASSY, Coupler Boom to Dipper RH, Incl 2, 3 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

Tube, Incl in 1

1шт.

3

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3шт.

4

84263545

HYD TUBE

ASSY, Coupler Boom to Dipper LH, Incl 3 (Qty 1), 5

1шт.

5

NSS

NOT SOLD SEPARAT

Tube, Incl in 4

1шт.

6

84329636

HOSE ASSY.,6.3mm ID x 2992mm L

6.3mm ID x 2992mm L, Coupler Boom LH, Incl 3 (Qty 1), 7

1шт.

7

NSS

NOT SOLD SEPARAT

Hose, Incl in 6

1шт.

8

84329637

HOSE ASSY.,6.3mm ID x 2927mm L

6.3mm ID x 2927mm L, Coupler Boom RH, Incl 9, 10

1шт.

9

NSS

NOT SOLD SEPARAT

Hose, Incl in 8

1шт.

10

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

11

84372989

GUARD

2шт.

12

86625003

BOLT,Hex, M8 x 50mm, Cl 10.9

2шт.

13

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

14

84269591

CLAMP,1/2" clamping pipes

2шт.

15

412250

NUT,M8 x 1.25, Cl 8

2шт.
