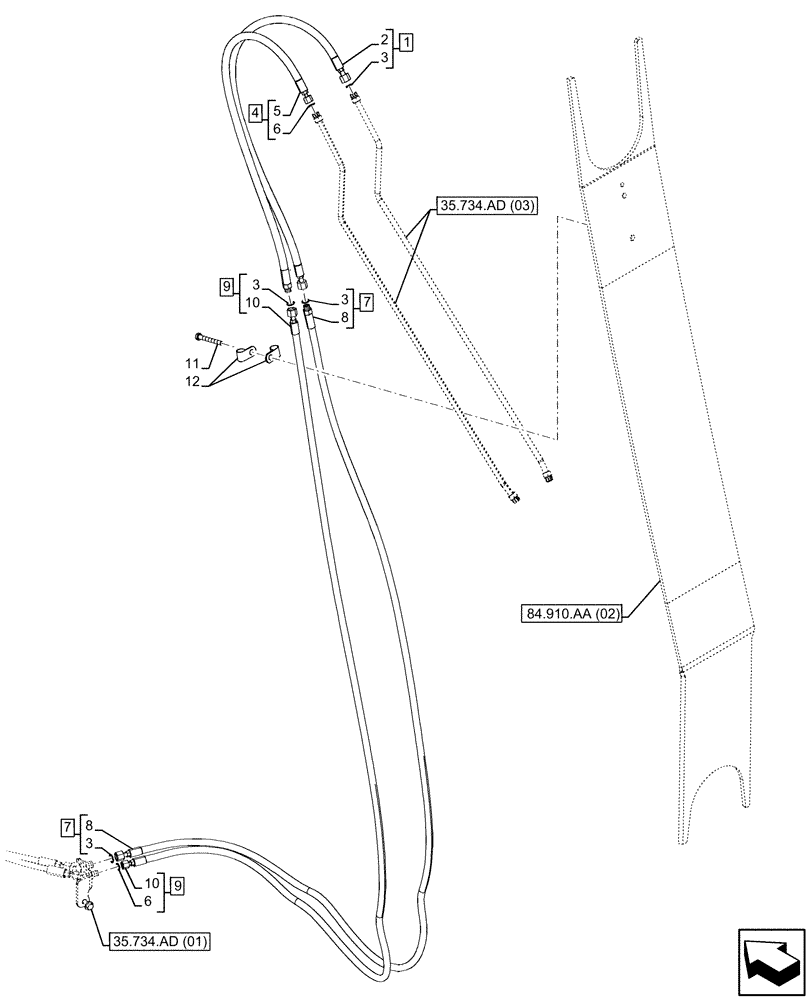

Запчасти Case 590SN (35.734.AD[02]) - QUICK COUPLER, VALVE, HYDRAULIC LINE, STANDARD DIPPER (35) - HYDRAULIC SYSTEMS

1

84343158

HOSE ASSY.,6.3mm ID x 1119mm L

Coupler Boom to Dipper LH, Incl 2, 3 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

Hose, Incl in 1

1шт.

3

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

4

84343134

HOSE ASSY.,6.3mm ID x 1103mm L

Coupler Boom to Dipper RH, Incl 5, 6 (Qty 1)

1шт.

5

NSS

NOT SOLD SEPARAT

Hose, Incl in 4

1шт.

6

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

7

84329636

HOSE ASSY.,6.3mm ID x 2992mm L

6.3mm ID x 2927mm L, Coupler Boom LH, Incl 3 (Qty 2), 8

1шт.

8

NSS

NOT SOLD SEPARAT

Hose, Incl in 7

1шт.

9

84329637

HOSE ASSY.,6.3mm ID x 2927mm L

6.3mm ID x 2992mm L, Coupler Boom RH, Incl 3 (Qty 1), 6 (Qty 1), 10

1шт.

10

NSS

NOT SOLD SEPARAT

Hose, Incl in 9

1шт.

11

BER120116

SCREW

1шт.

12

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

2шт.
