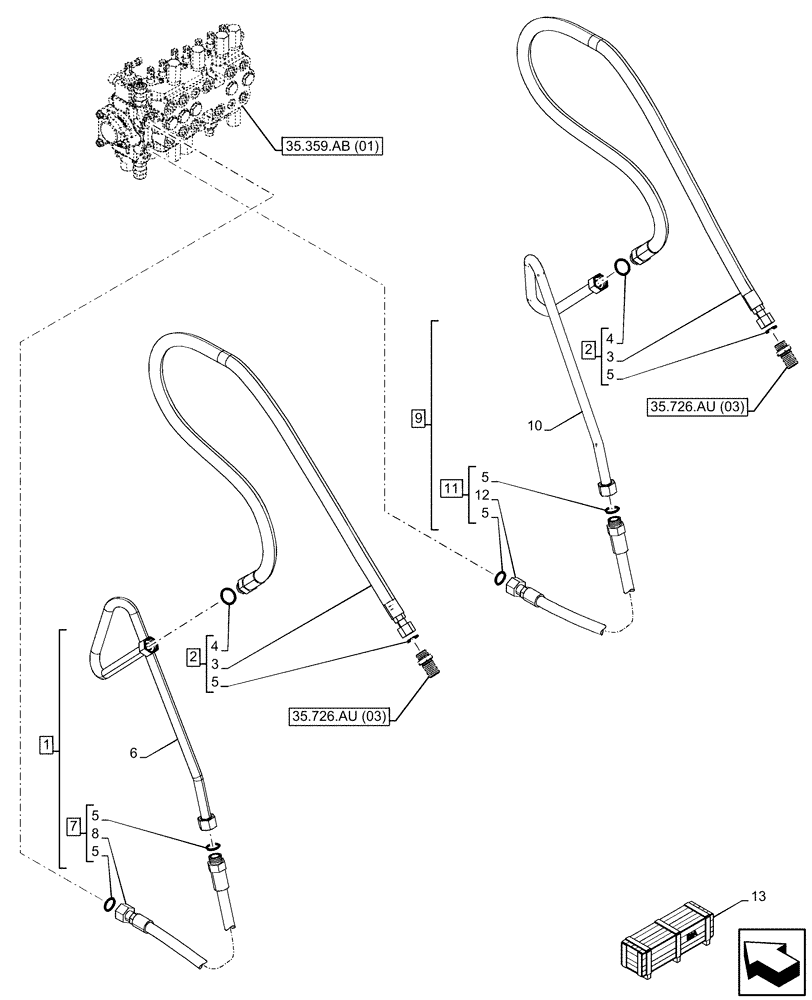

Запчасти Case 590SN (35.726.AU[02]) - EXTENDABLE DIPPER, AUXILIARY HYDRAULIC (35) - HYDRAULIC SYSTEMS

1

84294434

HYD TUBE

ASSY, Auxiliary LH, Incl 2 - 8

1шт.

2

84299653

HOSE ASSY.,19mm ID x 2030mm L

Valve to Boom, Incl 3 (Qty 1), 4 (Qty 1), 5 (Qty 1)

2шт.

3

NSS

NOT SOLD SEPARAT

Hose, Incl in 2

2шт.

4

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

5

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

6шт.

6

84343059

TUBE

Auxiliary LH

1шт.

7

84343947

HOSE,19mm ID x 2800mm L

ASSY, Valve to Boom Port B, Incl 5 (Qty 2), 8

1шт.

8

NSS

NOT SOLD SEPARAT

Hose, Incl in 7

1шт.

9

84294435

HYD TUBE

ASSY, Auxiliary RH, Incl 2 - 5, 10 - 12

1шт.

10

84343077

TUBE

Auxiliary RH

1шт.

11

84343946

HOSE,19mm ID x 2795mm L

ASSY, Valve to Boom Port A, Incl 5 (Qty 2), 12

1шт.

12

NSS

NOT SOLD SEPARAT

Hose, Incl in 11

1шт.

13

84546985

CONSTRUCTION DIA

No Auxiliary to Combo Auxiliary, Mechanical Control, Extendable Dipper, Incl 1 - 12

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

13

84546992

CONSTRUCTION DIA

Uni-Dir, Mechanical Control, Extendable Dipper, Incl 1 - 12

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

13

47359953

CONSTRUCTION DIA

Uni-Dir, Pilot Control, Extendable Dipper, Incl 1 - 12

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

13

47501542

CONSTRUCTION DIA

No Auxiliary to Combo, Pilot Control, Extendable Dipper, Incl 1 - 12

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.
