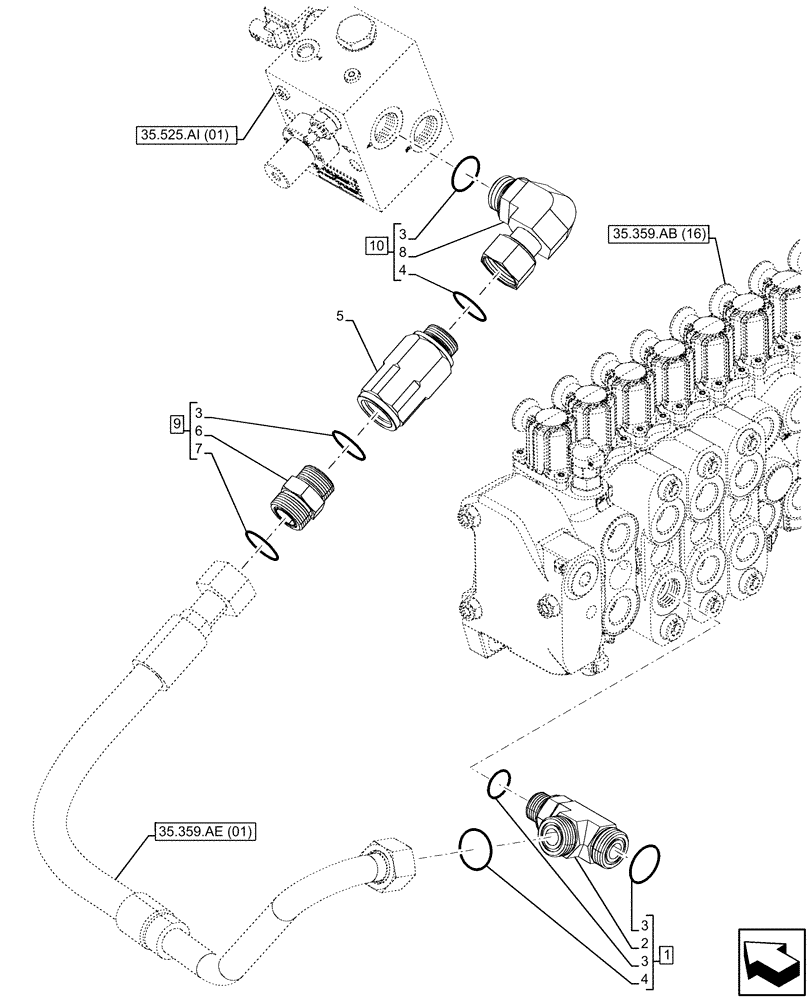

Запчасти Case 590SN (35.525.AA[22]) - VAR - 423083 - AUXILIARY HYDRAULIC, LINES (35) - HYDRAULIC SYSTEMS

1

87493307

RUN TEE

ASSY, Incl 2, 3 (Qty 1), 4 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

Tee, Incl in 1

1шт.

3

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

3шт.

4

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

5

84256601

CHECK VALVE

1шт.

6

NSS

NOT SOLD SEPARAT

Connector, Incl in 9

1шт.

7

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

8

NSS

NOT SOLD SEPARAT

90° Elbow, Incl in 10

1шт.

9

9824055

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-5/16" - 12 ORB

ASSY, Incl 3 (Qty 1), 6, 7

1шт.

10

84262694

90 ELBOW,1-7/16"-12 ORFS x 1-1/16"-12 ORB

ASSY, Incl 3 (Qty 1), 4 (Qty 1), 8

1шт.
