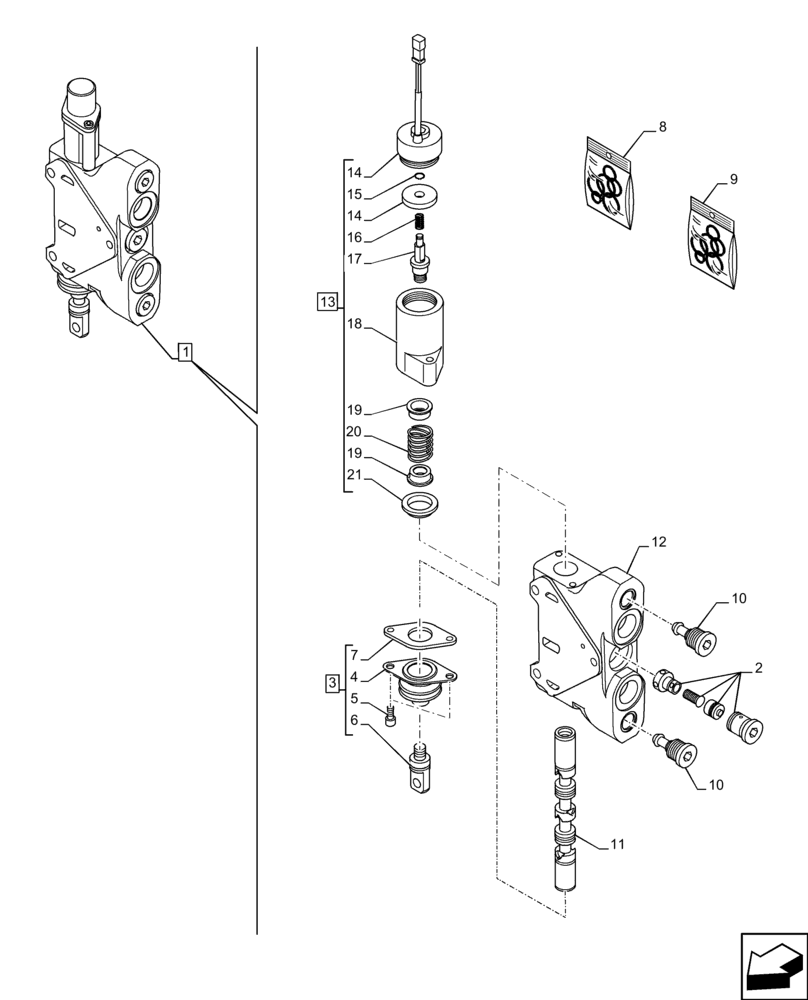

Запчасти Case 590SN (35.359.AB[42]) - VAR. - 747864 - LOADER, CONTROL VALVE, PILOT CONTROLS, 3-SPOOL, LOADER BUCKET, VALVE SECTION (35) - HYDRAULIC SYSTEMS

1

84295100

HYD VALVE SECTION

Loader Bucket, ASSY, Incl 2 - 21

1шт.

2

47422242

COMPENSATOR

1шт.

3

85824278

KIT

ASSY, Incl 4 - 7

1шт.

4

85820130

BOOT

1шт.

5

NSS

NOT SOLD SEPARAT

Screw, Incl in 3

2шт.

6

NSS

NOT SOLD SEPARAT

Spool, Incl in 3

1шт.

7

NSS

NOT SOLD SEPARAT

Cover, Incl in 3

1шт.

8

85825473

SEAL KIT

1шт.

9

87617657

O-RING KIT

1шт.

10

84295052

VALVE PRESSURE RELIE

2шт.

11

NSS

NOT SOLD SEPARAT

Spool, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

13

87754355

SERVICE KIT

ASSY, 14 - 21

1шт.

14

87754413

SERVICE KIT

1шт.

15

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 13

1шт.

16

NSS

NOT SOLD SEPARAT

Spring, Incl in 13

1шт.

17

NSS

NOT SOLD SEPARAT

Valve, Incl in 13

1шт.

18

NSS

NOT SOLD SEPARAT

Housing, Incl in 13

1шт.

19

NSS

NOT SOLD SEPARAT

Cap, Incl in 13

2шт.

20

NSS

NOT SOLD SEPARAT

Spring, Incl in 13

1шт.

21

NSS

NOT SOLD SEPARAT

Plug, Incl in 13

1шт.
