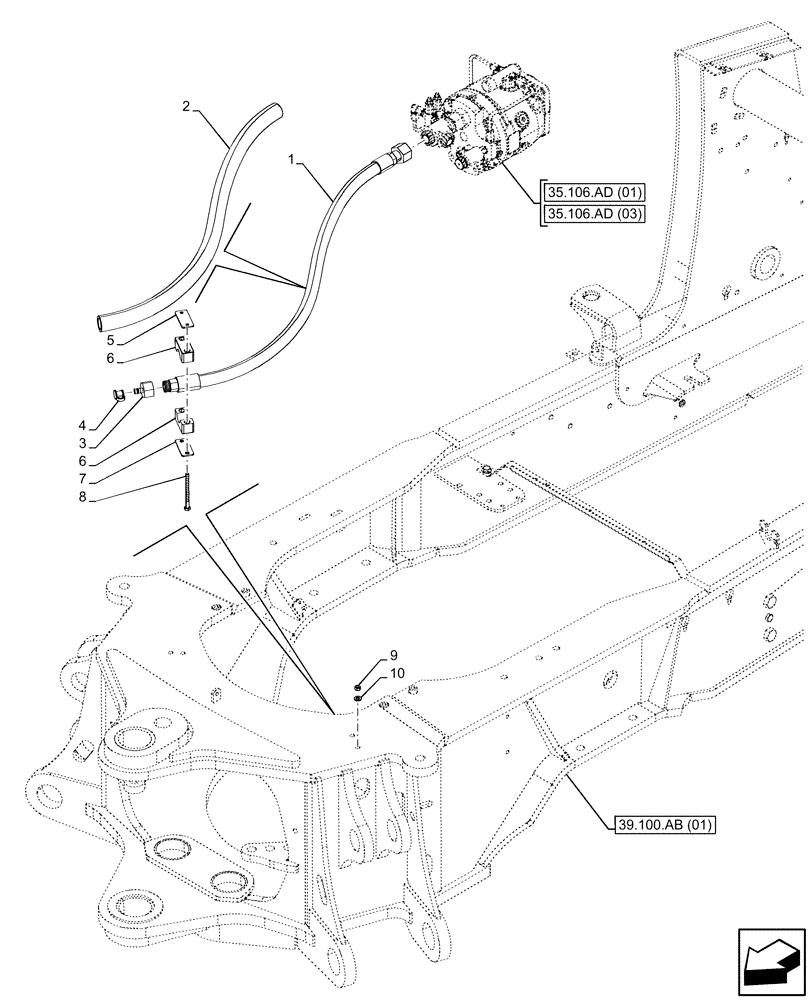

Запчасти Case 590SN (35.106.AO[02]) - PUMP, OIL LINE, FITTING (35) - HYDRAULIC SYSTEMS

1

84282578

HOSE,19mm ID x 1270mm L

L=1270mm

1шт.

2

84283583

GUARD,34mm ID x 1090mm L

L=1090mm

1шт.

3

84241474

DIAGNOSTIC COUPLER

1шт.

4

H434163

DUST CAP

1шт.

5

84323544

PLATE

1шт.

6

84296899

BLOCK

1шт.

7

84283077

BAR PLATE

1шт.

8

725403

BOLT,Hex, M8 x 1.25 x 100mm, Cl 8.8, Full Thd

2шт.

9

825-1408

NUT,M8, Cl 8

2шт.

10

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.
