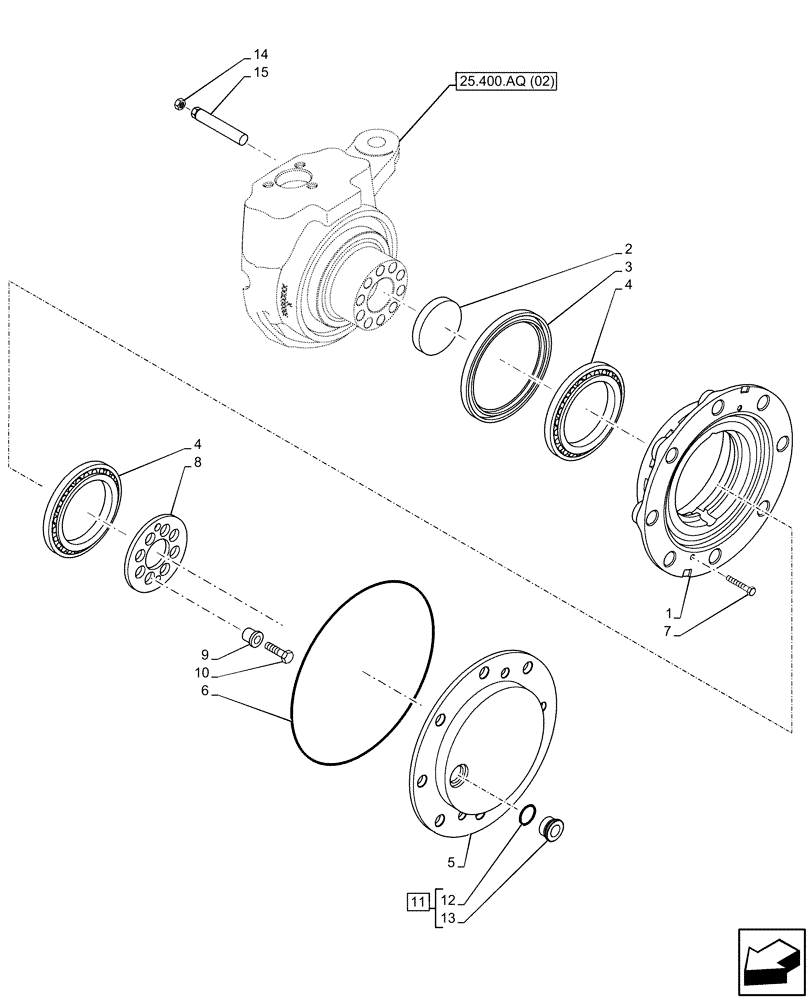

Запчасти Case 590SN (25.400.AU[02]) - FRONT AXLE, FINAL DRIVE, 2WD (25) - FRONT AXLE SYSTEM

1

47570583

HUB

1шт.

2

84211247

PLUG

1шт.

3

87349641

OIL SEAL,150mm ID x 180mm OD x 14.5/16mm Thk

1шт.

4

84545376

TAPERED BEARING,109.54mm ID x 158.7mm OD x 23.020mm L

2шт.

5

84210797

COVER

1шт.

6

14468780

O-RING,0.139" Thk x 8.73" ID, -269, Cl 5, 75 Duro

1шт.

7

47361879

SCREW,M8 x 20 Full 8.8 PHC

2шт.

8

84211140

FLANGE

1шт.

9

87015539

BOLT,Hex, M12 x 45mm, Cl 10.9

1шт.

10

84252637

SLEEVE,12.55mm ID x 20.080mm OD x 25mm Thk

8шт.

11

84272055

PLUG,M30 x 2

ASSY, Incl 12, 13

1шт.

12

9626929

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1шт.

13

84271945

PLUG,M30 x 2

Plug, Incl in 11

1шт.

14

47361877

NUT,Hex, Thin, M18 x 2.5, Cl. 5

1шт.

15

87751873

SCREW,M18 x 105mm, Cl 10.9

1шт.
