(21.700.AA[01]) - VAR - 423058 - TRANSMISSION, POWERSHUTTLE, TORQUE CONVERTER, 2WD

Запчасти Case 590SN (21.700.AA[01]) - VAR - 423058 - TRANSMISSION, POWERSHUTTLE, TORQUE CONVERTER, 2WD (21) - TRANSMISSION

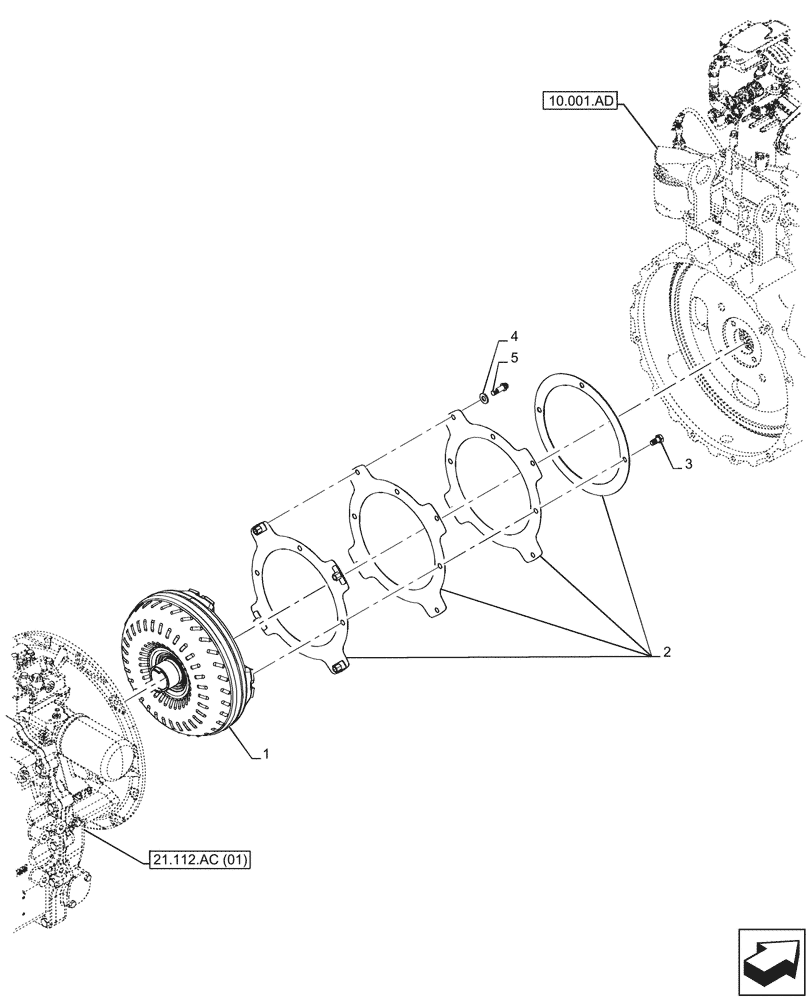

Схема запчастей Case 590SN - (21.700.AA[01]) - VAR - 423058 - TRANSMISSION, POWERSHUTTLE, TORQUE CONVERTER, 2WD (21) - TRANSMISSION
21.112.ac (01)
4
1
2
3
5
10.001.ad
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87702193

CONVERTER

Powershuttle Transmission, 2WD

1шт.

2

47442982

KIT

1шт.

3

87019767

12 PT SCREW,M10 x 1.25 x 30mm, Cl 10.9

4шт.

4

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

5

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

Выбрано товаров: 5
